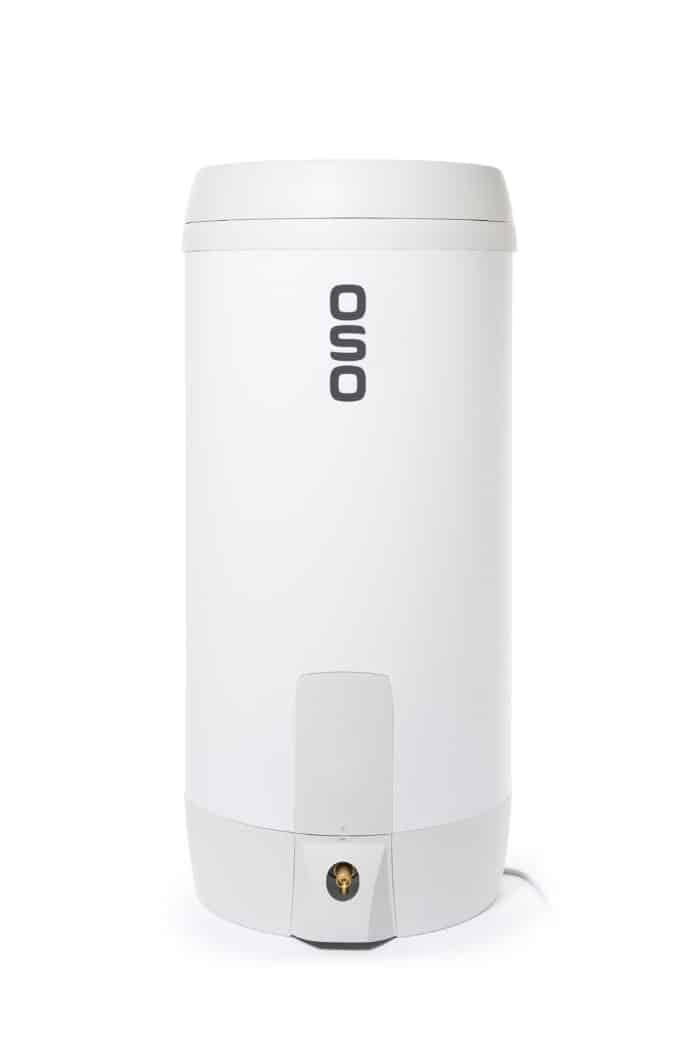

Water heater SAGA COIL – SC – is designed for high temperature energy sources such as gas, bio-boiler or district heating up to 25 kW due to the integrated, efficient pipe coil. SAGA COIL has a large capacity as the added power can be significant, and hot water will almost always be available.

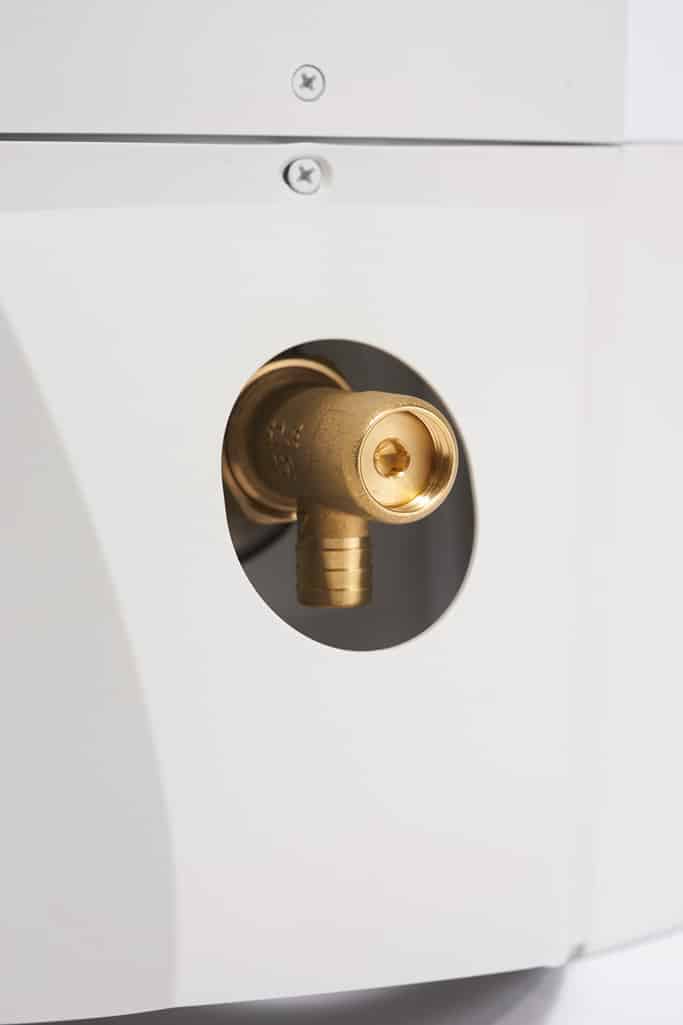

SAGA COIL is delivered with sensor pocket, pressure and temperature release and separate drain valve. The electric heating element can be used during summer operation or as a back-up. SAGA COIL should be selected for high temperature energy sources.

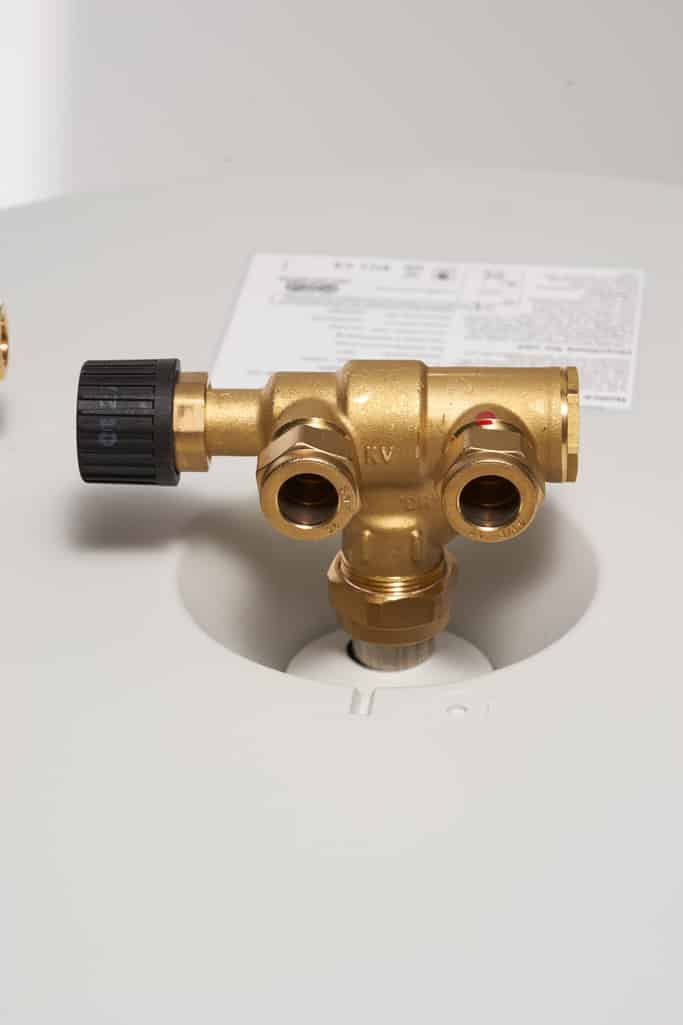

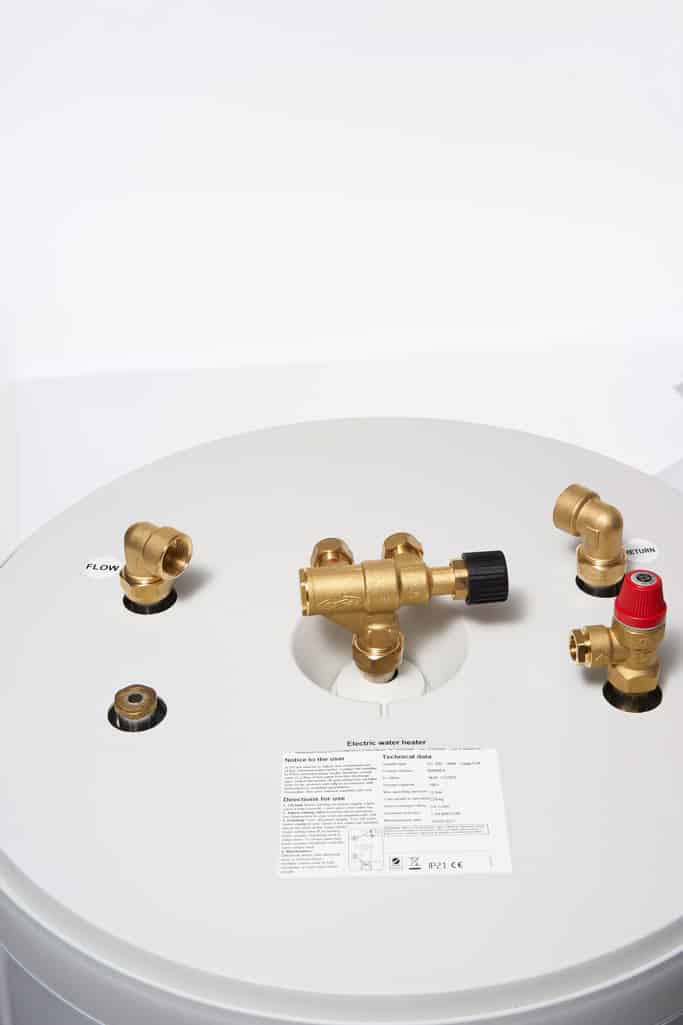

SAGA is Norway’s best-selling water heater for several decades. Modern and practical design hides all pipes and connections. SAGA is easy to install with all pipe connections on top and is directly suitable as a replacement for OSO water heaters from 1980 without changing the pipe layout. The mixing valve lowers the outgoing water temperature and prevents the risk of scalding. SAGA has the market’s lowest heat loss in combination with high storage temperature for unbeatable performance and more hot water.
WHY CHOOSE SAGA COIL?
ADVANTAGES
IMPORTANT EQUIPMENT
| Weight | 150 kg |
|---|---|
| Dimensions | 3 cm |
 | ||||
| Specifications | UNIT | SC 150 – 3 kW/1x230V+HX 0.8m² | SC 200 – 3 kW/1x230V+HX 1.0m² | SC 300 – 3 kW/1x230V+HX 1.1m² |
|---|---|---|---|---|
| Identification | ||||
| Product no. | OSO | 1 1 009 722 | 1 1 009 723 | 1 1 009 724 |
| Product name | SC 150 - 3 kW/1x230V+HX 0.8m² | SC 200 - 3 kW/1x230V+HX 1.0m² | SC 300 - 3 kW/1x230V+HX 1.1m² | |
| Usage | N/A | N/A | N/A | |
| Placement | Floor | Floor | Floor | |
| Dimensions | ||||
| Diameter — ⌀ | mm | 570 | 570 | 570 |
| Height - H | mm | 1010 | 1260 | 1710 |
| Weight | kg | 31 | 39 | 51 |
| Packaging | mm | N/A | N/A | N/A |
| Freight volume | dm3 | 0.37 | 0.46 | 0.62 |
| Technical/ErP information | ||||
| Capacity | persons | N/A | N/A | N/A |
| Capacity 40°C | L | 251 | 355 | 539 |
| Volume | L | 140 | 190 | 277 |
| Heat-up time ΔT 65°C | hours | N/A | N/A | N/A |
| Thermostat set point | °C | 75 | 75 | 75 |
| Heat loss-EN 12897 | watt | 52 | 64 | 84 |
| AEC (energy consumption) | kW/year | N/A | N/A | N/A |
| Energy efficiency | % | N/A | N/A | N/A |
| Tapping profile | 3XS–XXL | N/A | N/A | N/A |
| Energy rating | A+–F | B | C | C |
MORE HOT WATER
Substantially higher temperature (70°C+), highly efficient mixing valve (no scolding), minimal heat loss and optimal design features gives up to 20 % more hot water and class leading capacity.
PRO INSULATION
The use of NANOPUR™ with insulation values far surpassing Pentane, often in combination with VACUUM panels, ensures minimum heat loss and class leading energy efficiency.
STRONGER
EVERLAST™ titanium alloyed stainless steel in combination with OSO’s unique ULTRAWELD™ system and state-of-the-art passivation process equals class leading corrosion resistance.
LIGHTER
EVERLAST™ titanium alloyed, high tensile strength, stainless steel equals lower weight and efficient use of resources. OSO products are more than 40 % lighter than enameled products.
BUILT TO LAST
INCOTEC™ el. immersion heaters with ultra high-grade Incoloy 825 stainless, DZR brass, zinc-free soldering and carefully calculated surface loads results in maximum durability in hard water.
