VERSA – V – can be mounted on the floor or wall, in a high cabinet or in a kitchen counter (30/50 L), and is very flexible. The water heater’s slim design with a diameter of only 43 cm provides good stratification between cold and hot water and VERSA has high performance. Further increase of capacity can be done by increasing the temperature in the boiler to 75 °C, using. the externally adjustable thermostat. Temperature at the tapping point can be adjusted downwards with the included mixing valve.

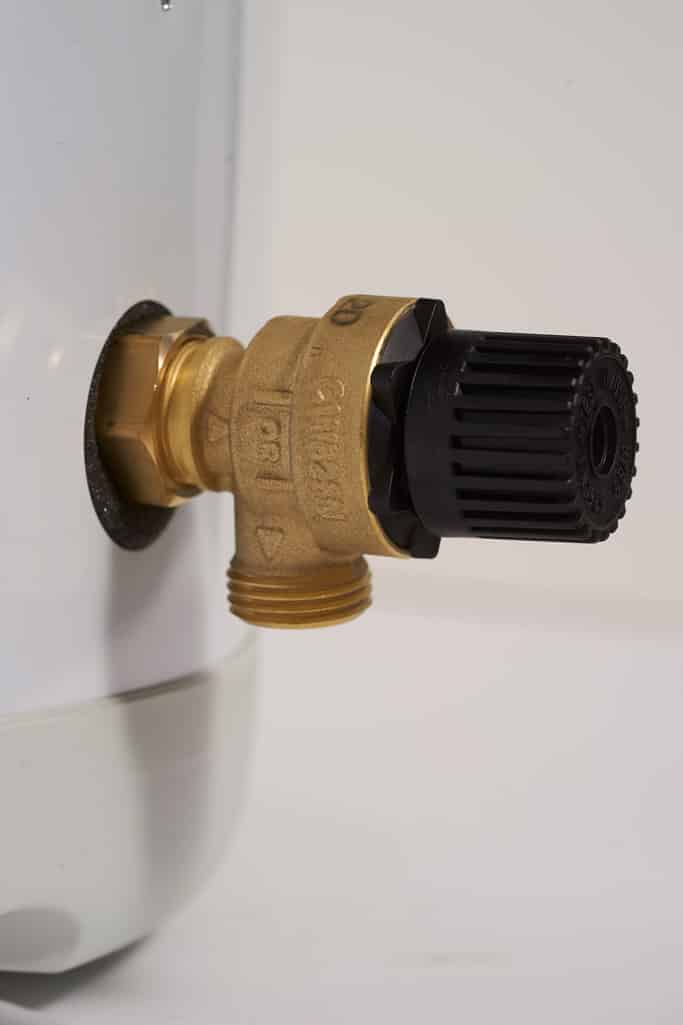

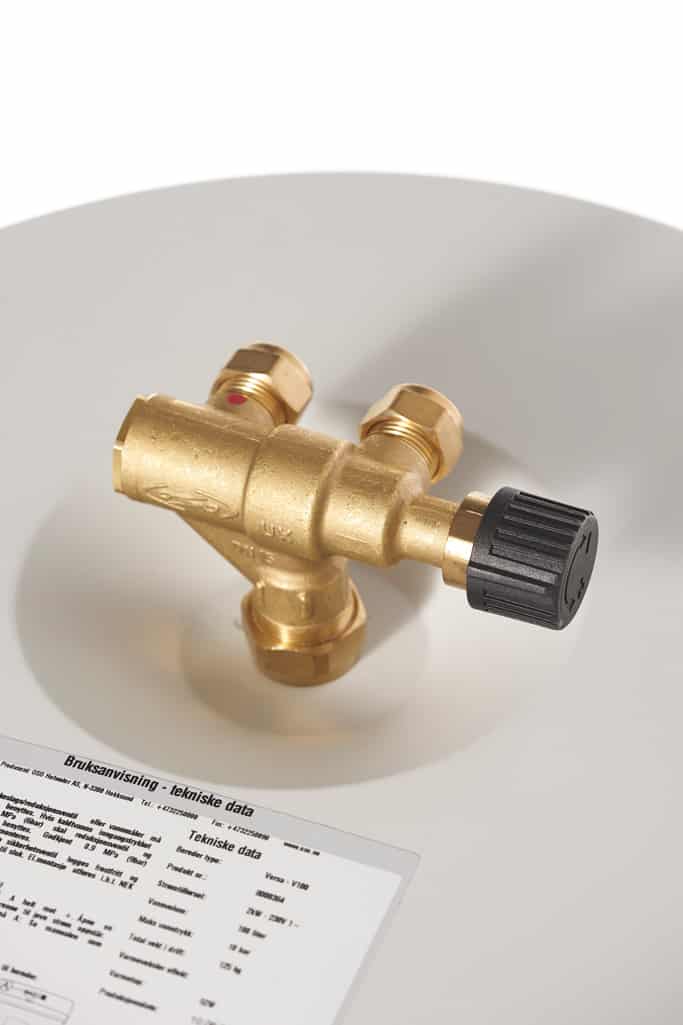

VERSA is a smaller version of the SAGA series, with a modern and practical design that hides all pipes and connections. VERSA is easy to install with all pipe connections on top and a slim diameter for easy placement. The mixing valve lowers the outgoing water temperature and prevents the risk of scalding. VERSA has the market’s lowest heat loss in its class, in combination with high storage temperature for unbeatable performance and more hot water.
WHY CHOOSE VERSA?
|Specifications||UNIT||V 120 – 2 kW / 1 × 230 V||V 30 – 2 kW / 1 × 230 V||V 50 – 2 kW / 1 × 230 V||V 70 - 2 kW / 1×230V||V 90 - 2 kW / 1×230V|
|Product name||V 120 – 2 kW / 1 × 230 V||V 30 – 2 kW / 1 × 230 V||V 50 – 2 kW / 1 × 230 V||V 70 - 2 kW / 1×230V||V 90 - 2 kW / 1×230V|
|Usage||Not applicable||Not applicable||Not applicable||Not applicable|
|Placement||Floor or wall||Floor or wall||Floor or wall||Floor or wall|
|Diameter — ⌀||mm||430||430||430||430|
|Height - H||mm||1500||500||710||920|
|Packaging||mm||450 × 450 × 1560||450 × 450 × 580||450 × 450 × 790||450 × 450 × 980|
|Capacity 40°C||L||Not applicable||Not applicable||Not applicable||Not applicable|
|Heat-up time ΔT 65°C||hours||4,0||1,0||1,6||2,3|
|Thermostat set point||°C||65||70||70||65|
|Heat loss-EN 12897||watt||54||26||36||43|
|AEC (energy consumption)||kW/year||Not applicable||Not applicable||Not applicable||Not applicable|
|Energy efficiency||%||Not applicable||Not applicable||Not applicable||Not applicable|
|Tapping profile||3XS–XXL||Not applicable||Not applicable||Not applicable||Not applicable|
MORE HOT WATER
Substantially higher temperature (70°C+), highly efficient mixing valve (no scolding), minimal heat loss and optimal design features gives up to 20 % more hot water and class leading capacity.
The use of NANOPUR™ with insulation values far surpassing Pentane, often in combination with VACUUM panels, ensures minimum heat loss and class leading energy efficiency.
EVERLAST™ titanium alloyed stainless steel in combination with OSO’s unique ULTRAWELD™ system and state-of-the-art passivation process equals class leading corrosion resistance.
EVERLAST™ titanium alloyed, high tensile strength, stainless steel equals lower weight and efficient use of resources. OSO products are more than 40 % lighter than enameled products.
BUILT TO LAST
INCOTEC™ el. immersion heaters with ultra high-grade Incoloy 825 stainless, DZR brass, zinc-free soldering and carefully calculated surface loads results in maximum durability in hard water.
