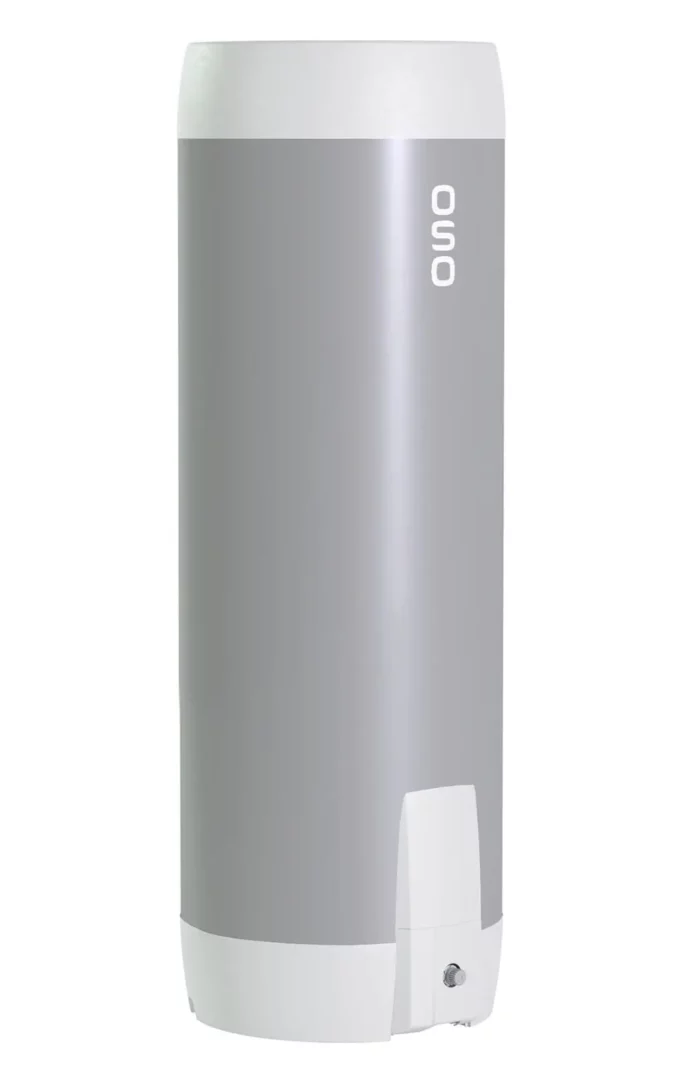

SAGA 2.0 INDUSTRIAL

Water Heater That Endures 3x Tougher Environments

Water Heater SAGA 2.0 INDUSTRIAL – withstands 3x more aggressive water and harsh industrial environments.

The metallic aluminum-gray outer casing of the water heater gives it a modern look and is classified as C5 corrosion-resistant according to ISO 9223. The INDUSTRIAL model also features anti-corrosion treatment, enabling it to handle extremely aggressive water with up to 200 mg Cl./l. The INDUSTRIAL water heater is compatible with retrofitting the OSO CHARGE™ smart control, which automatically heats water when electricity prices are at their lowest, resulting in significant savings. Alternatively, the extra ½” connection can be used for hot water circulation or high-temperature water output.

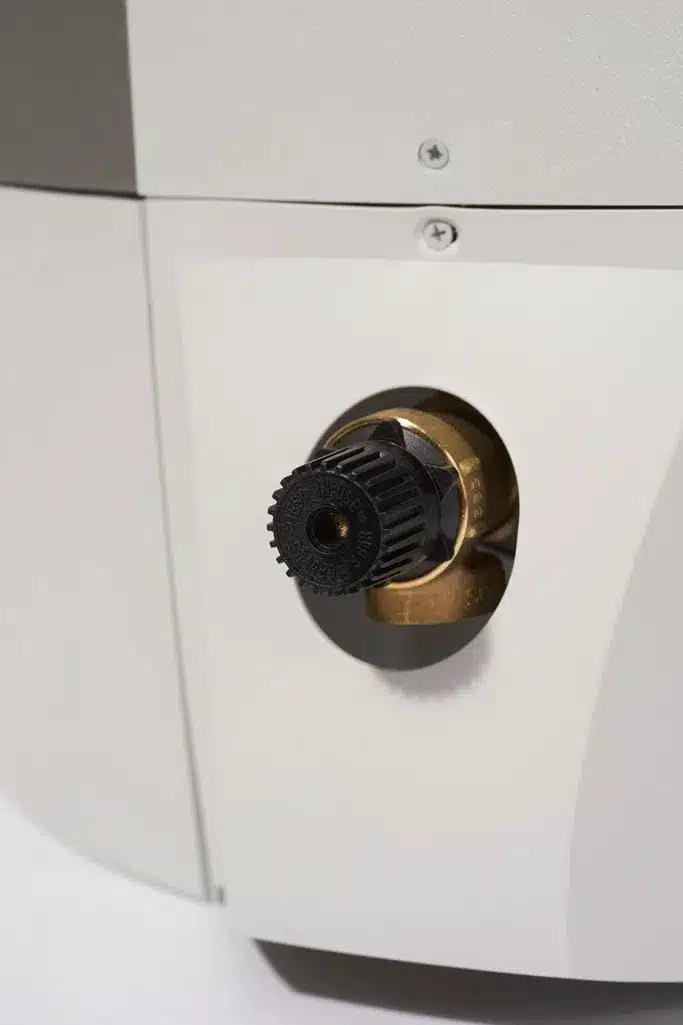

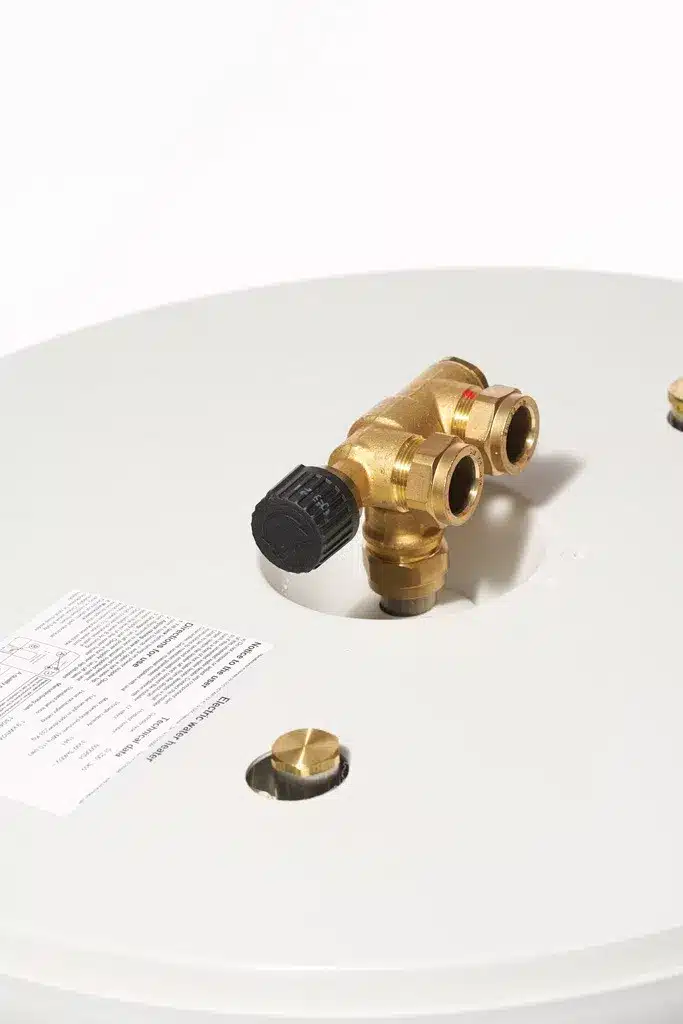

The mixing valve reduces the outgoing water temperature, preventing the risk of scalding.

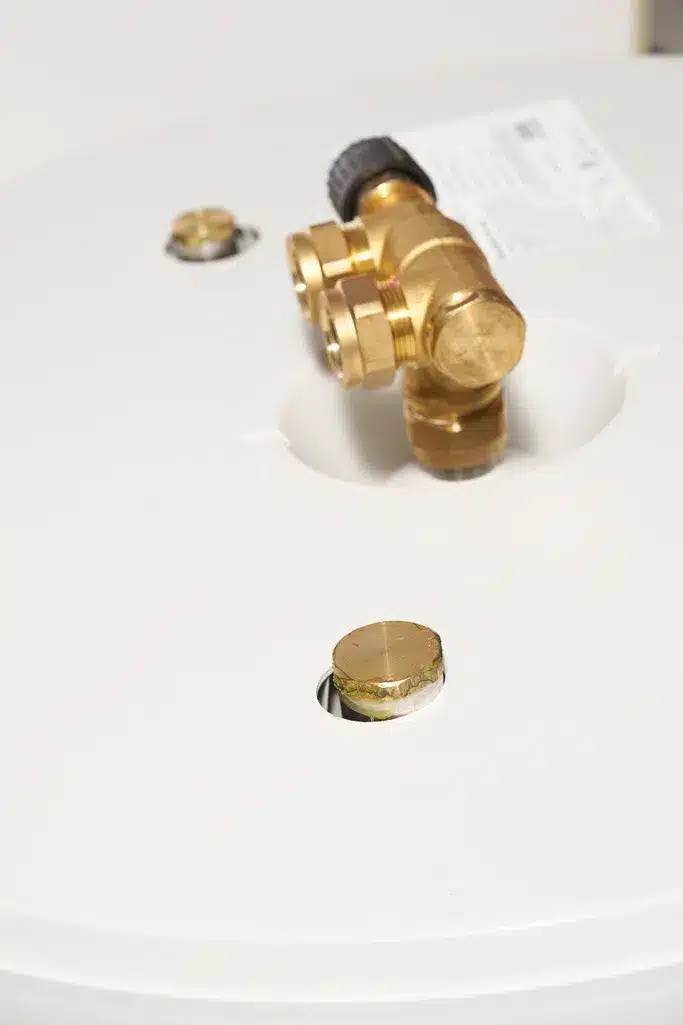

SAGA 2.0 is an improved version of our most popular series of water heaters. SAGA has been Norway’s best-selling water heater for decades. The SAGA 2.0 boasts the market’s lowest heat loss with 30% more foam insulation, which, combined with high storage temperatures, delivers unbeatable performance and more hot water. Its modern and practical design conceals all pipes and connections. Additionally, the heater is easy to install, with all pipe connections on top, and can directly replace OSO water heaters from the 1980s without requiring changes to the piping system.

WHY CHOOSE SAGA 2.0 INDUSTRIAL?

  • Withstands 3x more aggressive environments, both internally and externally
  • More energy-efficient with 30% more insulation than its predecessor
  • Larger volume and higher temperature provide more hot water
  • SMART ready – OSO CHARGE™ can be retrofitted

Advantages

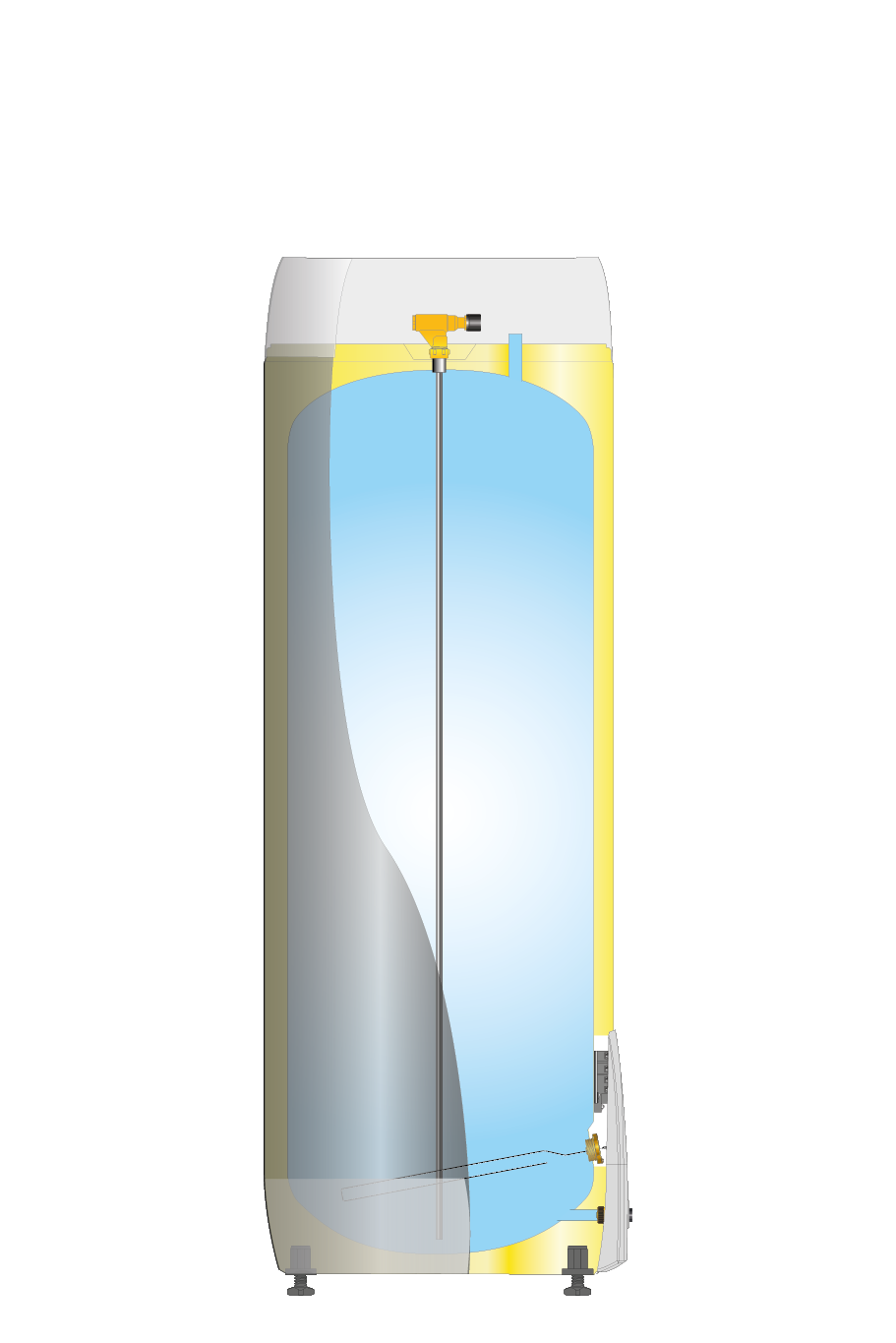

Key components

OSO Saga Industrial S2I 300 NO 07 2024
SpecificationsUNITS₂I 300 – 3 kW/3x400V / 3kW/1x230V
Identification
Product no.OSO11011667
Product nameS₂I 300 – 3 kW/3x400V / 3kW/1x230V
Usage
Placement
Dimensions
Diameter — ⌀mm595
Height - Hmm1780
Weightkg48
Packagingmm
Freight volumedm30,64
Technical/ErP information
Capacitypersons5.5
Capacity 40°CL489
VolumeL281
Heat-up time ΔT 65°Chours
Thermostat set point°C75
Heat loss-EN 12897watt76
AEC (energy consumption)kW/year4532
Energy efficiency%38
Tapping profile3XS–XXLXL
Energy ratingA+–FD

Advantages

MORE HOT WATER
Substantially higher temperature (70°C+), highly efficient mixing valve (no scolding), minimal heat loss and optimal design features gives up to 20 % more hot water and class leading capacity.

PRO INSULATION
The use of NANOPUR™ with insulation values far surpassing Pentane, often in combination with VACUUM panels, ensures minimum heat loss and class leading energy efficiency.

STRONGER
EVERLAST™ titanium alloyed stainless steel in combination with OSO’s unique ULTRAWELD™ system and state-of-the-art passivation process equals class leading corrosion resistance.

LIGHTER
EVERLAST™ titanium alloyed, high tensile strength, stainless steel equals lower weight and efficient use of resources. OSO products are more than 40 % lighter than enameled products.

BUILT TO LAST
INCOTEC™ el. immersion heaters with ultra high-grade Incoloy 825 stainless, DZR brass, zinc-free soldering and carefully calculated surface loads results in maximum durability in hard water.
