SAGA 2.0 COIL

Water Heater for District Heating or Biomass Boiler

Water Heater SAGA 2.0 COIL – designed for high-temperature energy sources such as gas boilers, biomass boilers, or district heating systems up to 30 kW, thanks to its integrated, efficient coil. The SAGA 2.0 COIL has a large capacity, as it can handle significant energy input, ensuring hot water is almost always available.

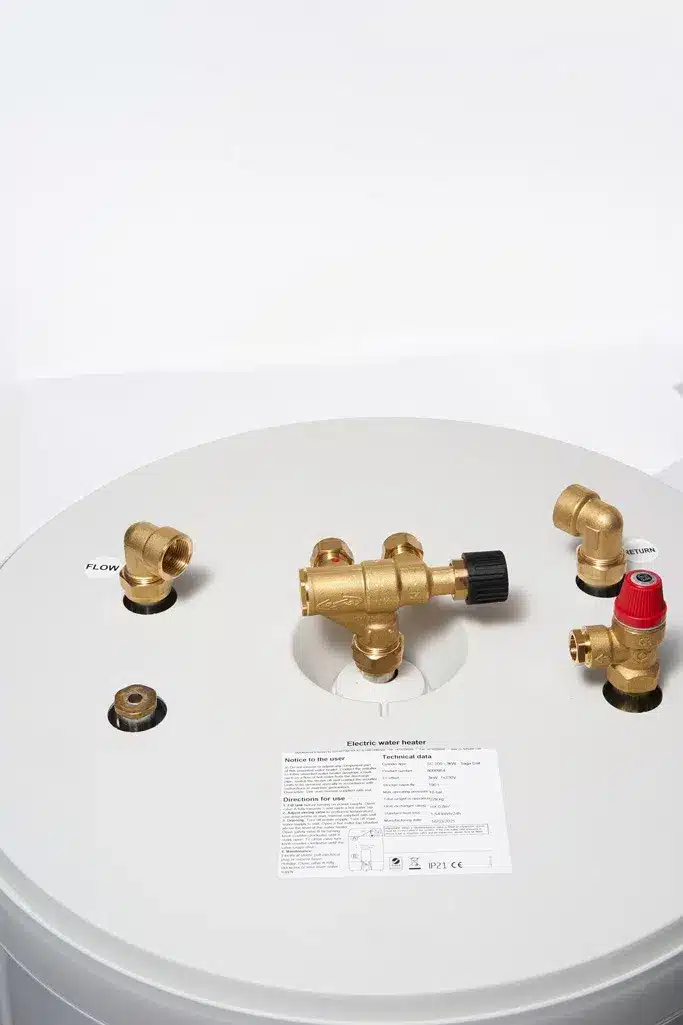

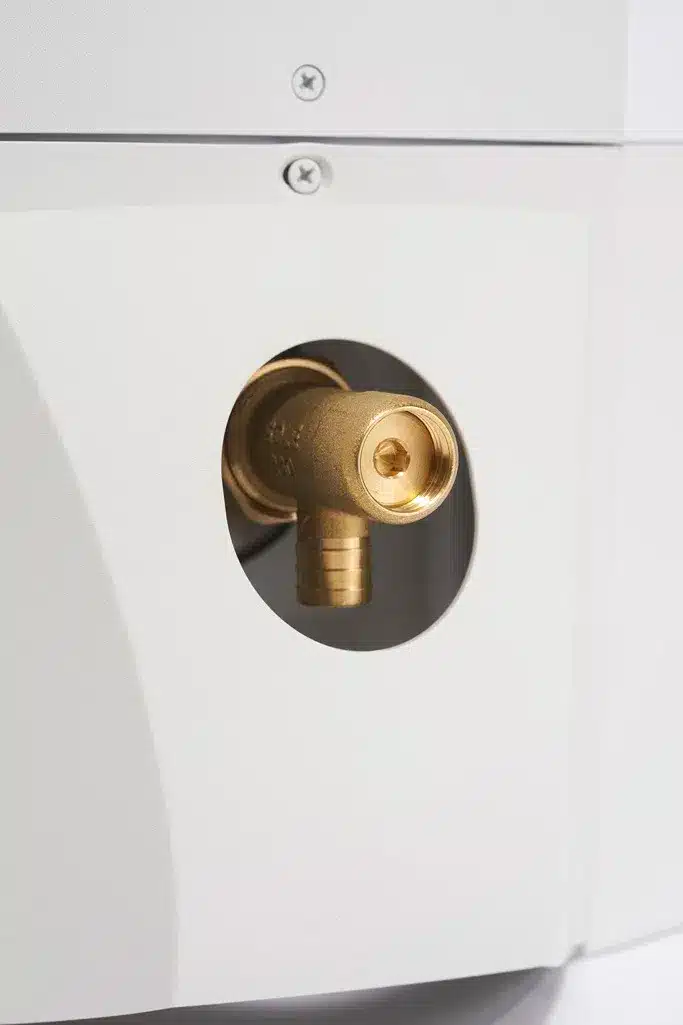

The SAGA 2.0 COIL comes equipped with a sensor pocket, pressure and temperature release valve, and a separate drainage valve. The electric heating element can be used during summer operation or as a backup. The SAGA 2.0 COIL is ideal for high-temperature energy sources.

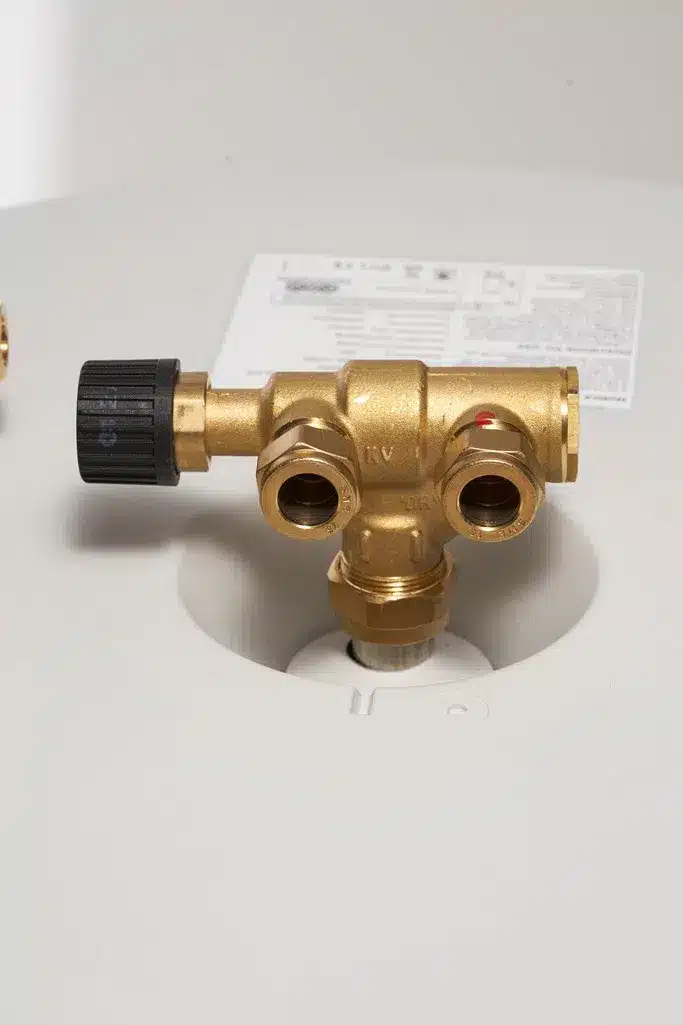

The mixing valve reduces the outgoing water temperature, preventing the risk of scalding.

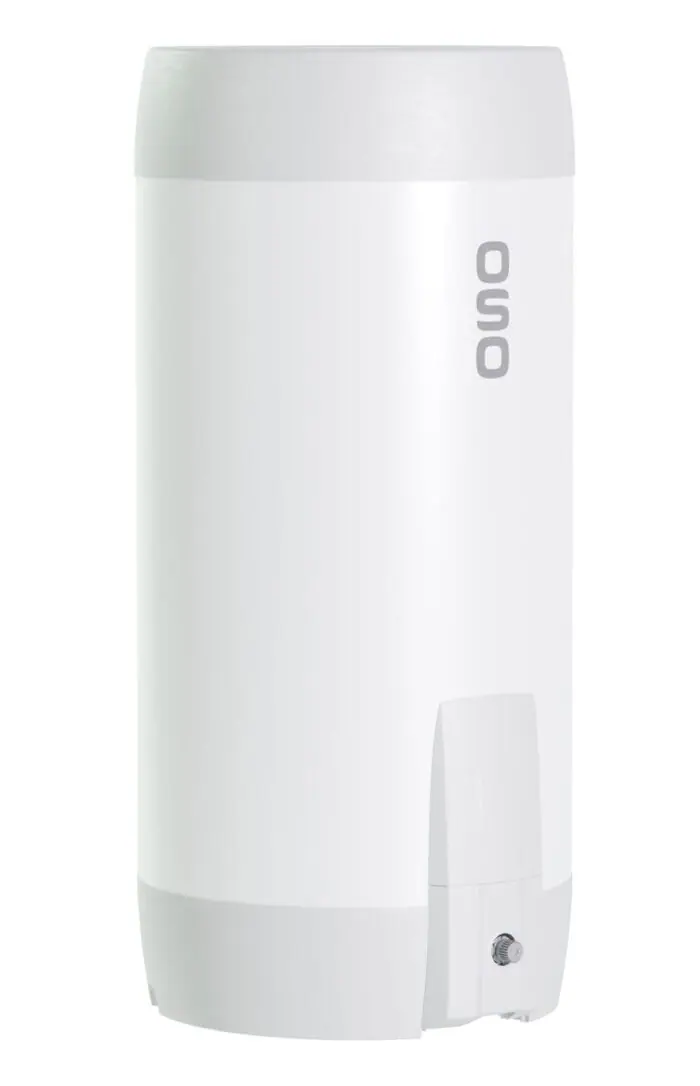

SAGA 2.0 is an improved version of our most popular series of water heaters. SAGA has been Norway’s best-selling water heater for decades. The SAGA 2.0 boasts the market’s lowest heat loss with 30% more foam insulation. Combined with high storage temperatures, this ensures unbeatable performance and more hot water. Its modern and practical design conceals all pipes and connections. Additionally, the heater is easy to install, with all pipe connections located at the top, and it can directly replace OSO water heaters from the 1980s without requiring any changes to the piping system.

WHY CHOOSE SAGA 2.0 COIL?

  • Integrated heat exchanger for biomass boiler / district heating ≤ 30 kW
  • Electric operation during summer or as a backup
  • More energy-efficient with 30% more insulation

Advantages

Key components

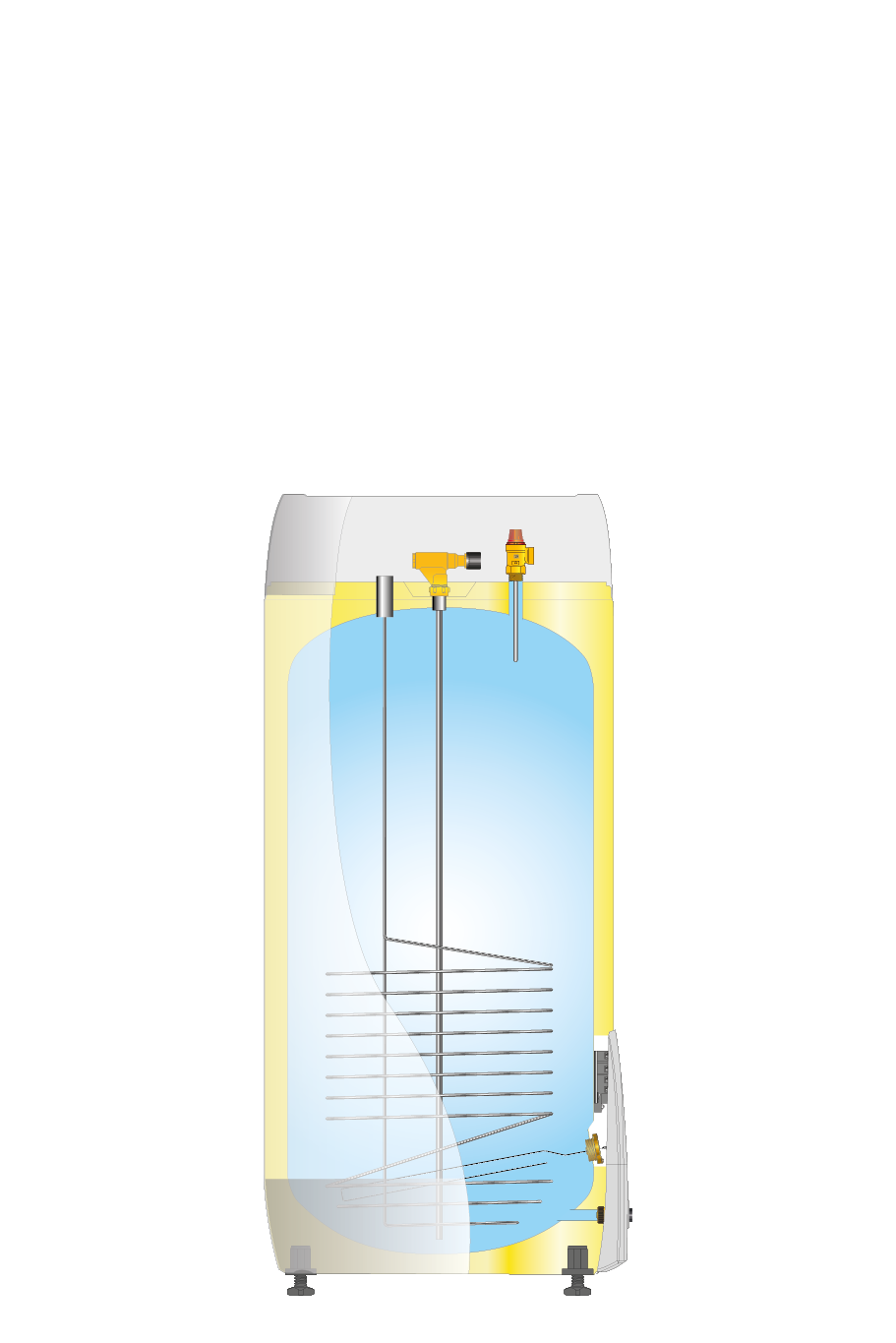

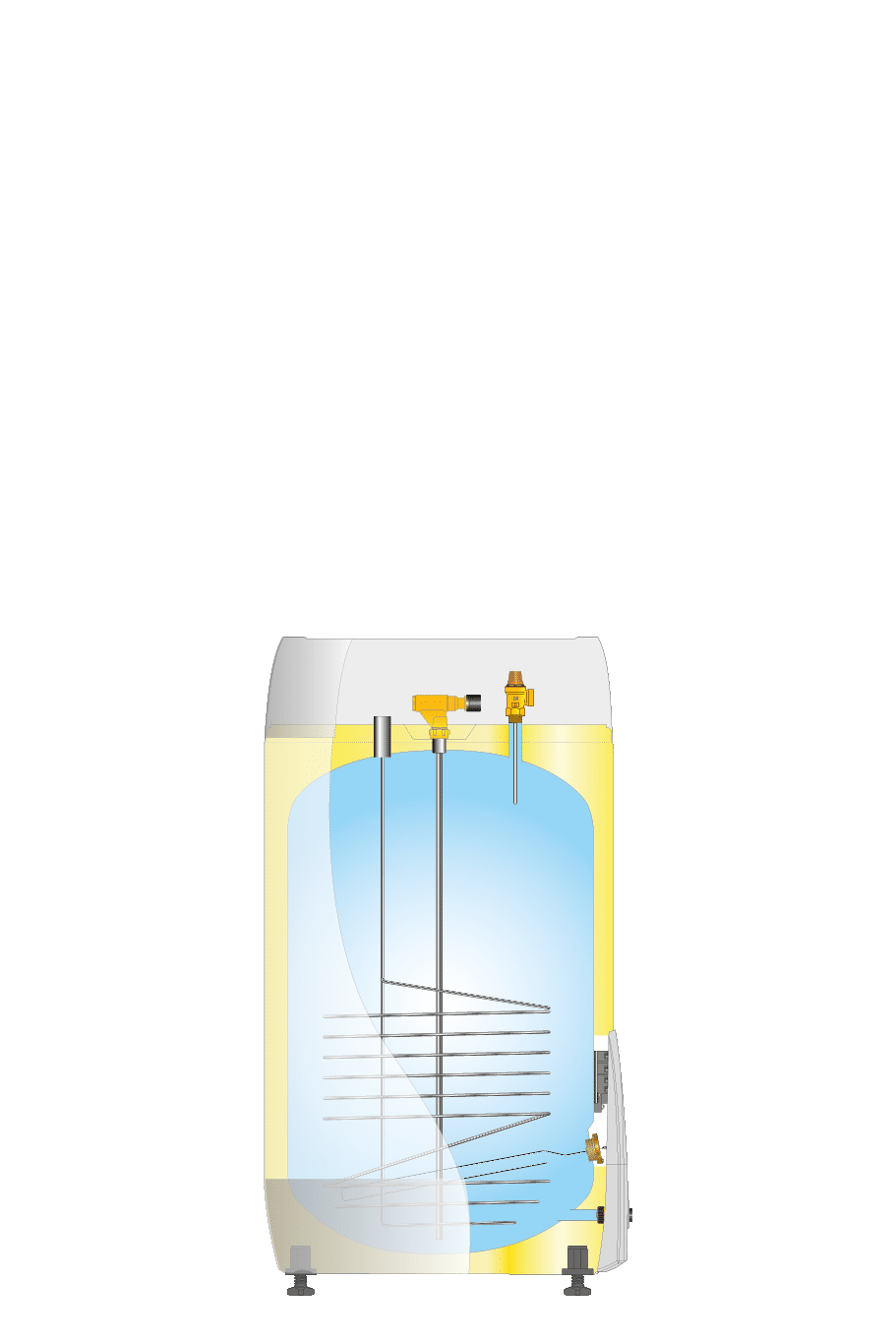

OSO Saga Coil S2C 150 NO 07 2024 OSO Saga Coil S2C 210 NO 07 2024 OSO Saga Coil S2C 300 NO 07 2024
SpecificationsUNITS₂C 150 – 2.8 kW/1x230V+HX 0.8m2S₂C 210 – 2.8 kW/1x230V+HX 1.0m2S₂C 300 – 2.8 kW/1x230V+HX 1.1m2
Identification
Product no.OSO110116531101165411011655
Product nameS₂C 150 - 2.8 kW/1x230V+HX 0.8m2S₂C 210 - 2.8 kW/1x230V+HX 1.0m2S₂C 300 - 2.8 kW/1x230V+HX 1.1m2
Usage
Placement
Dimensions
Diameter — ⌀mm595595595
Height - Hmm111013751780
Weightkg365157
Packagingmm
Freight volumedm30,410,500,64
Technical/ErP information
Capacitypersons3,54,55,5
Capacity 40°CL260340490
VolumeL147197271
Heat-up time ΔT 65°Chours
Thermostat set point°C707070
Heat loss-EN 12897watt475768
AEC (energy consumption)kW/year---
Energy efficiency%---
Tapping profile3XS–XXL
Energy ratingA+–FBBC

Advantages

MORE HOT WATER
Substantially higher temperature (70°C+), highly efficient mixing valve (no scolding), minimal heat loss and optimal design features gives up to 20 % more hot water and class leading capacity.

PRO INSULATION
The use of NANOPUR™ with insulation values far surpassing Pentane, often in combination with VACUUM panels, ensures minimum heat loss and class leading energy efficiency.

STRONGER
EVERLAST™ titanium alloyed stainless steel in combination with OSO’s unique ULTRAWELD™ system and state-of-the-art passivation process equals class leading corrosion resistance.

LIGHTER
EVERLAST™ titanium alloyed, high tensile strength, stainless steel equals lower weight and efficient use of resources. OSO products are more than 40 % lighter than enameled products.

BUILT TO LAST
INCOTEC™ el. immersion heaters with ultra high-grade Incoloy 825 stainless, DZR brass, zinc-free soldering and carefully calculated surface loads results in maximum durability in hard water.
