SAGA XPRESS – SX – is suitable for large hot water needs if there is limited space for installation. XPRESS delivers hot water 3 × faster than STANDARD, without using more power. Upper and lower heating elements alternate between heating the water and significantly reduces the heat-up time. The additional G1/2″F connection can be used for hot water circulation or maximum temperature outlet.

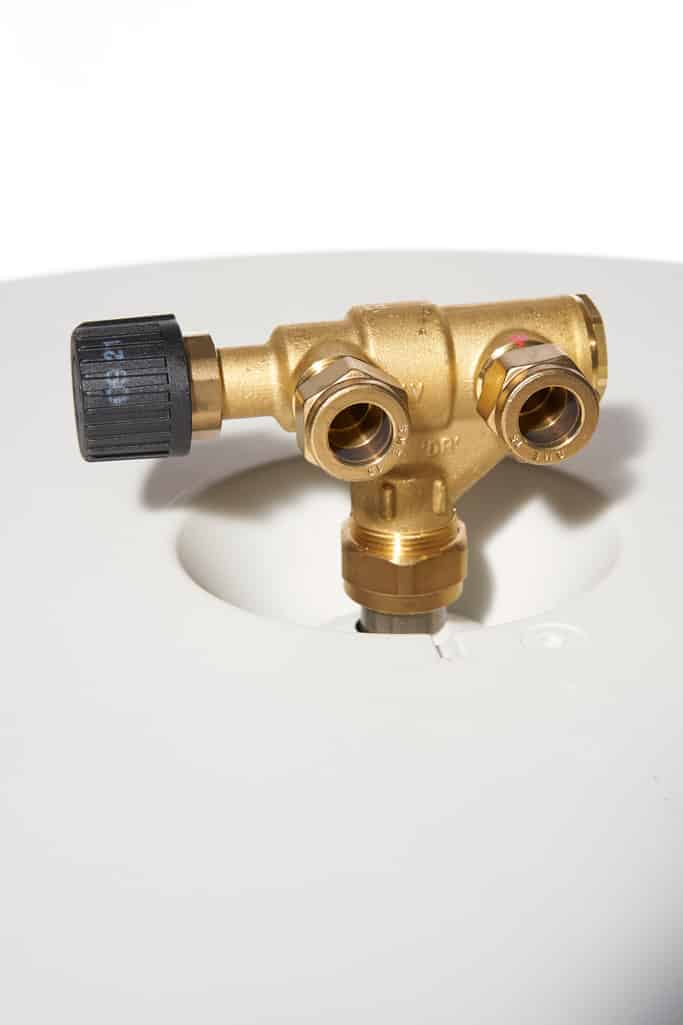

SAGA has been our best-selling water heater for decades. Modern and practical design hides all pipes and connections.SAGA is easy to install with all connections on top. The mixing valve lowers the outgoing water temperature and prevents the risk of scalding.SAGA has the market’s highest storage temperature for unbeatable performance and more hot water.
WHY CHOOSE SAGA XPRESS?
ADVANTAGES
IMPORTANT EQUIPMENT
| Weight | 150 kg |
|---|---|
| Dimensions | 3.5 cm |
 |  |  | ||
| Specifications | UNIT | SX 150 – 2+(2) kW / 1 × 230 V | SX 200 – 3+(3) kW / 1 × 230 V | SX 300 – 3+(3) kW / 1 × 230 V |
|---|---|---|---|---|
| Identification | ||||
| Product no. | OSO | 1 1 003 171 | 1 1 003 172 | 1 1 003 173 |
| Product name | SX 150 – 2+(2) kW / 1 × 230 V | SX 200 – 3+(3) kW / 1 × 230 V | SX 300 – 3+(3) kW / 1 × 230 V | |
| Usage | N/A | N/A | N/A | |
| Placement | Floor | Floor | Floor | |
| Dimensions | ||||
| Diameter — ⌀ | mm | 570 | 570 | 570 |
| Height - H | mm | 1010 | 1260 | 1710 |
| Weight | kg | 31 | 39 | 51 |
| Packaging | mm | N/A | N/A | N/A |
| Freight volume | dm3 | 0.39 | 0.47 | 0.63 |
| Technical/ErP information | ||||
| Capacity | persons | 3.5 | 4.5 | 6.5 |
| Capacity 40°C | L | 251 | 355 | 539 |
| Volume | L | 143 | 194 | 287 |
| Heat-up time ΔT 65°C | hours | N/A | N/A | N/A |
| Thermostat set point | °C | 75 | 75 | 75 |
| Heat loss-EN 12897 | watt | 53 | 65 | 85 |
| AEC (energy consumption) | kW/year | N/A | N/A | N/A |
| Energy efficiency | % | N/A | N/A | N/A |
| Tapping profile | 3XS–XXL | N/A | N/A | N/A |
| Energy rating | A+–F | B | C | C |
MORE HOT WATER
Substantially higher temperature (70°C+), highly efficient mixing valve (no scolding), minimal heat loss and optimal design features gives up to 20 % more hot water and class leading capacity.
PRO INSULATION
The use of NANOPUR™ with insulation values far surpassing Pentane, often in combination with VACUUM panels, ensures minimum heat loss and class leading energy efficiency.
STRONGER
EVERLAST™ titanium alloyed stainless steel in combination with OSO’s unique ULTRAWELD™ system and state-of-the-art passivation process equals class leading corrosion resistance.
LIGHTER
EVERLAST™ titanium alloyed, high tensile strength, stainless steel equals lower weight and efficient use of resources. OSO products are more than 40 % lighter than enameled products.
BUILT TO LAST
INCOTEC™ el. immersion heaters with ultra high-grade Incoloy 825 stainless, DZR brass, zinc-free soldering and carefully calculated surface loads results in maximum durability in hard water.
