OSO SAGA S
Unbeatable performance
SAGA STANDARD – S – is our most popular product range, suitable for most families’ hot water needs. Simple, efficient direct electric heating with higher storage temperature than others and factory-fitted mixing valve. The additional G1/2″F connection can be used for hot water circulation or maximum temperature outlet. STANDARD is our most cost-effective series and the natural choice for a domestic electric water heater

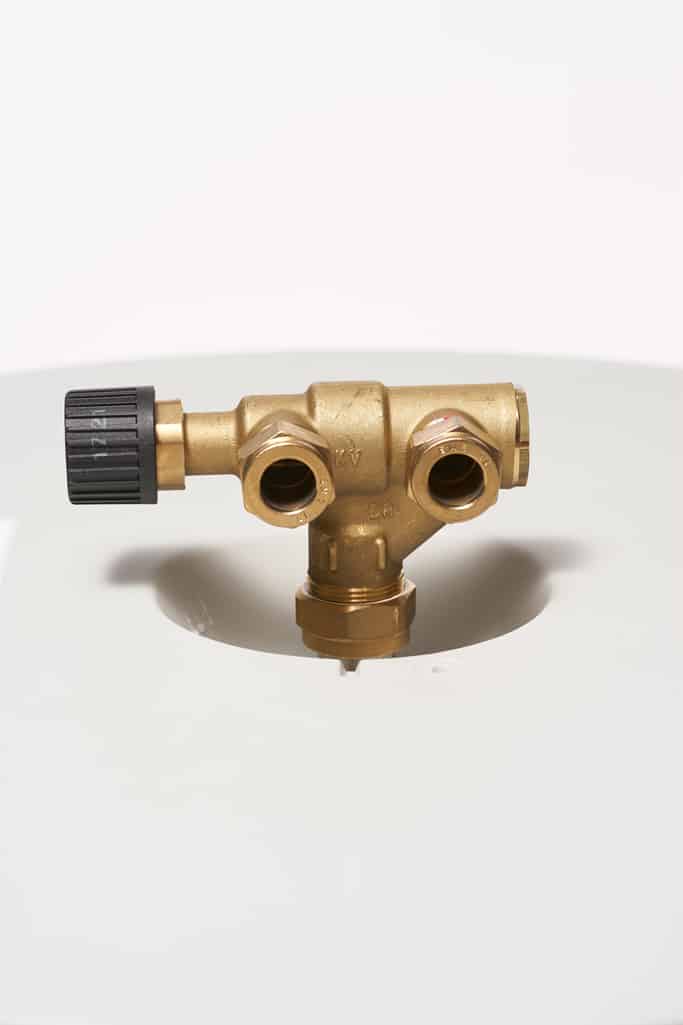

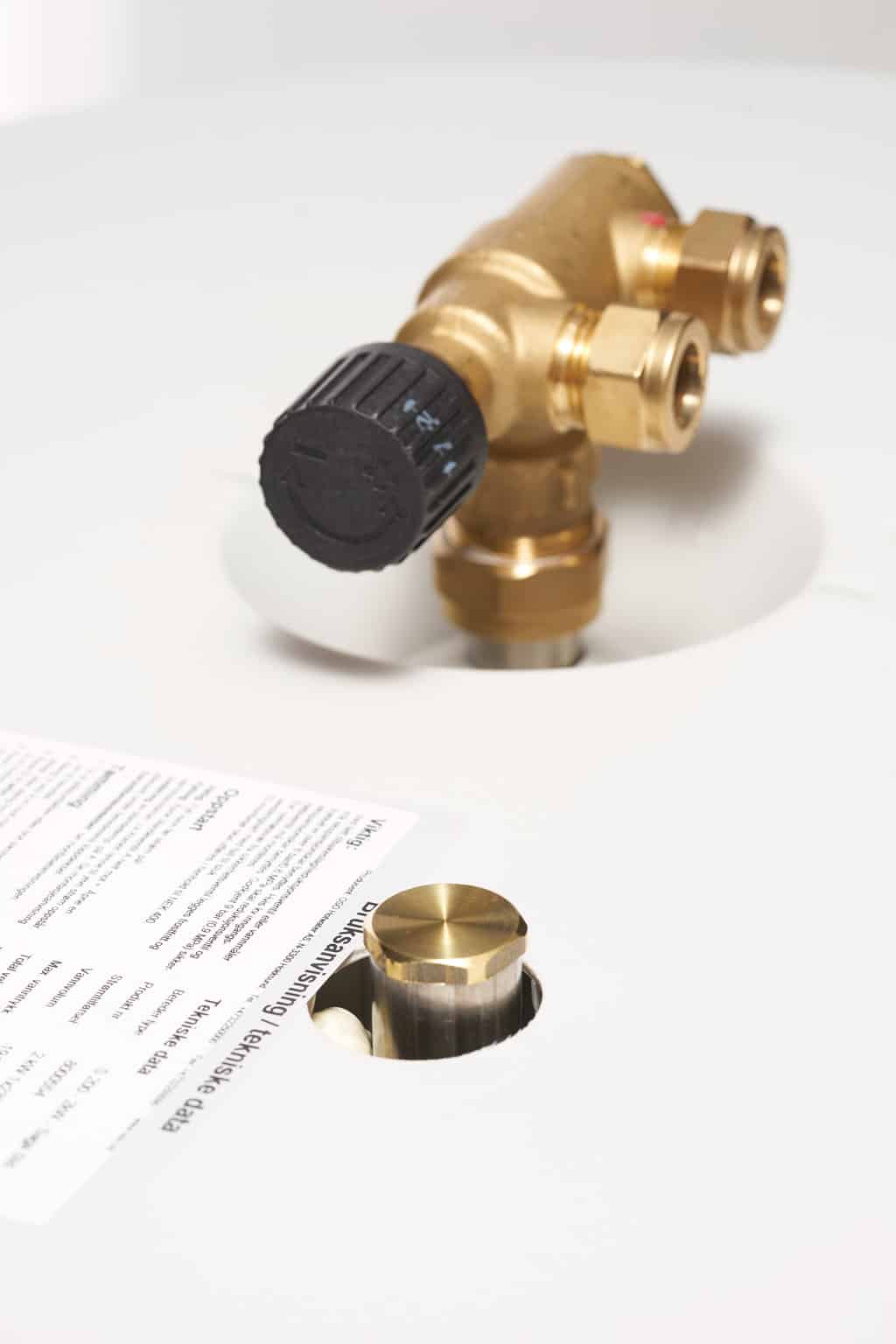

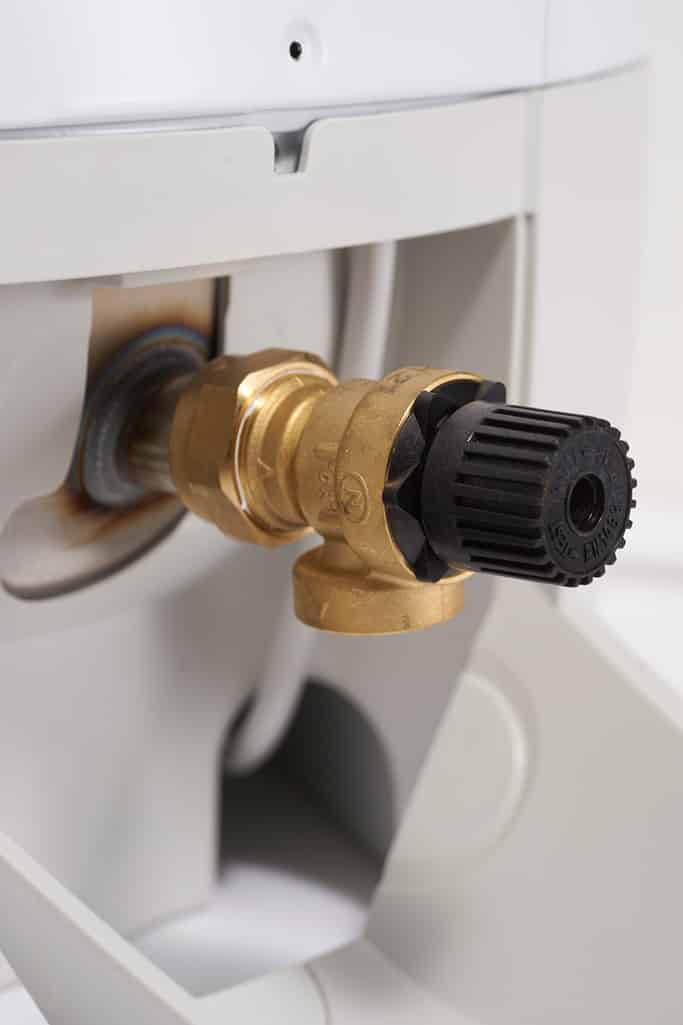

SAGA has been our best-selling water heater for decades. Modern and practical design hides all pipes and connections. SAGA is easy to install with all connections on top. The mixing valve lowers the outgoing water temperature and prevents the risk of scalding.SAGA has the market’s highest storage temperature for unbeatable performance and more hot water.
WHY CHOOSE SAGA?
• Save approx. 500 kWh / year vs. glass wool insulated products
• Higher storage temperature provides more hot water
 |  |  | ||
| Specifications | UNIT | S 150 – 2 kW/1x230V | S 200 – 3 kW/1x230V | S 300 – 3 kW/1x230V |
|---|---|---|---|---|
| Identification | ||||
| Product no. | OSO | 1 1 009 121 | 1 1 003 543 | 1 1 003 544 |
| Product name | S 150 - 2 kW/1x230V | S 200 - 3 kW/1x230V | S 300 - 3 kW/1x230V | |
| Usage | N/A | N/A | N/A | |
| Placement | Floor | Floor | Floor | |
| Dimensions | ||||
| Diameter — ⌀ | mm | 570 | 570 | 570 |
| Height - H | mm | 830 | 1260 | 1710 |
| Weight | kg | 31 | 39 | 51 |
| Packaging | mm | N/A | N/A | N/A |
| Freight volume | dm3 | 0.39 | 0.47 | 0.64 |
| Technical/ErP information | ||||
| Capacity | persons | 3.5 | 4.0 | 5.5 |
| Capacity 40°C | L | 255 | 344 | 490 |
| Volume | L | 143 | 194 | 280 |
| Heat-up time ΔT 65°C | hours | N/A | N/A | N/A |
| Thermostat set point | °C | 70 | 70 | 70 |
| Heat loss-EN 12897 | watt | 53 | 66 | 86 |
| AEC (energy consumption) | kW/year | N/A | N/A | N/A |
| Energy efficiency | % | N/A | N/A | N/A |
| Tapping profile | 3XS–XXL | N/A | N/A | N/A |
| Energy rating | A+–F | B | C | C |
Advantages
MORE HOT WATER
Substantially higher temperature (70°C+), highly efficient mixing valve (no scolding), minimal heat loss and optimal design features gives up to 20 % more hot water and class leading capacity.
PRO INSULATION
The use of NANOPUR™ with insulation values far surpassing Pentane, often in combination with VACUUM panels, ensures minimum heat loss and class leading energy efficiency.
STRONGER
EVERLAST™ titanium alloyed stainless steel in combination with OSO’s unique ULTRAWELD™ system and state-of-the-art passivation process equals class leading corrosion resistance.
LIGHTER
EVERLAST™ titanium alloyed, high tensile strength, stainless steel equals lower weight and efficient use of resources. OSO products are more than 40 % lighter than enameled products.
BUILT TO LAST

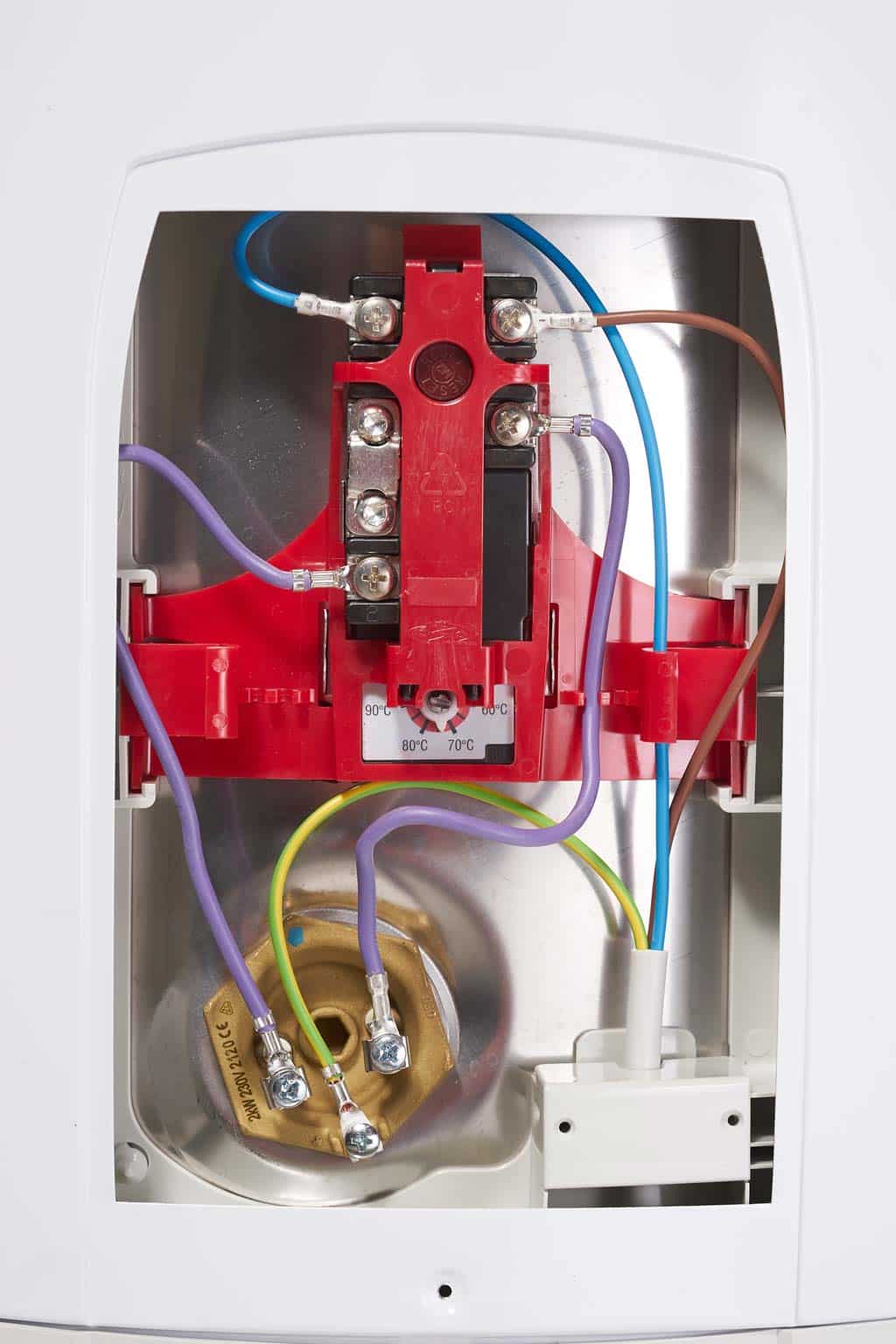

INCOTEC™ el. immersion heaters with ultra high-grade Incoloy 825 stainless, DZR brass, zinc-free soldering and carefully calculated surface loads results in maximum durability in hard water.
