OSO SAGA COIL SC

Name: Water heater indirect SAGA COIL - OSO Hotwater
SKU: SC-no

Custom made for boilers

SAGA COIL – SC – is designed for high temperature energy sources such as gas boilers, bio-fuel or
district heating up to 25 kW due to the integrated,efficient tube heat exchanger. SAGA COIL features large capacity as the input power can be significant, and hot water will almost always be available. SAGA COIL is delivered with sensor pocket,pressure and temperature release valve and separate drain valve. The electric heating element can be as back-up for added operational safety.

SAGA has been our best-selling water heater for decades. Modern and practical design hides all
pipes and connections.SAGA is easy to install with all connections on top. The mixing valve lowers the outgoing water temperature and prevents the risk of scalding.SAGA has the market’s highest storage temperature for unbeatable performance and more hot water.

WHY CHOOSE SAGA COIL?

Save approx. 500 kWh / year vs. glass wool insulated products
Integrated heat exchanger for bio-water heater / district
heating ≤ 25 kW
Electric operation during the summer or as a back-up

Water Heater Saga Coil SC 200 OSO Hotwater

Description
Additional information

ADVANTAGES

SAGA DESIGN - All connections hidden
NANOPUR - Class-leading insulation
ULTRAWELD - Superior corrosion resistance
INCOTEC - High durability in hard water
ECO–HOTWATER - DHW from alternative energy

IMPORTANT EQUIPMENT

Thermostat – Adjustable 50 - 75 °C
Mixing valve – Adjustable 40 - 70 °C
Safety valve – 9 bar / 90 °C / G ½”F overflow
Drain valve – 10 mm. hose coupling
Mains cable – 3 m. with schuko plug
Heating element – G 1.¼ "M / limescale resistant
Appliance feet – Adjustable 0 - 40 mm.

Weight	150 kg
Dimensions	3 cm

Specifications
Advantages
Documents

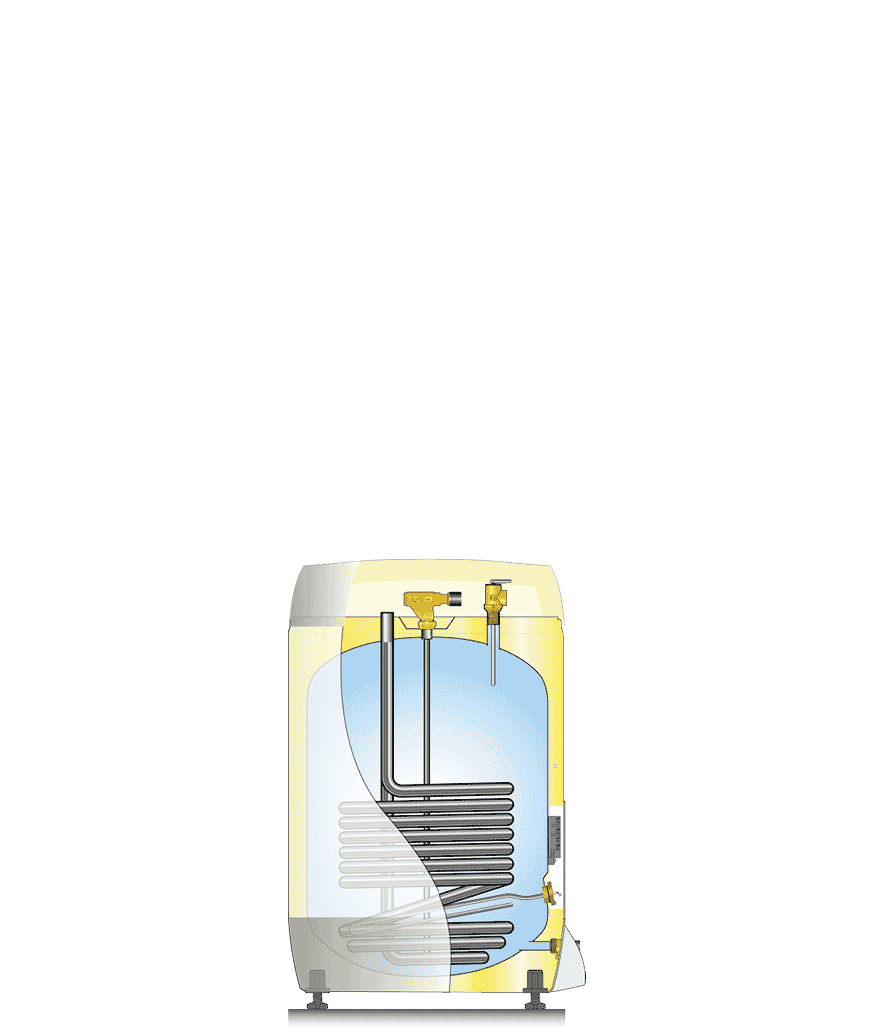

Specifications	UNIT	SC 150 – 3 kW/1x230V+HX 0.8m²	SC 200 – 3 kW/1x230V+HX 1.0m²	SC 300 – 3 kW/1x230V+HX 1.1m²

Identification
Product no.	OSO	1 1 009 722	1 1 009 723	1 1 009 724
Product name		SC 150 - 3 kW/1x230V+HX 0.8m²	SC 200 - 3 kW/1x230V+HX 1.0m²	SC 300 - 3 kW/1x230V+HX 1.1m²
Usage		N/A	N/A	N/A
Placement		Floor	Floor	Floor
Dimensions
Diameter — ⌀	mm	570	570	570
Height - H	mm	1010	1260	1710
Weight	kg	31	39	51
Packaging	mm	N/A	N/A	N/A
Freight volume	dm³	0.37	0.46	0.62
Technical/ErP information
Capacity	persons	N/A	N/A	N/A
Capacity 40°C	L	251	355	539
Volume	L	140	190	277
Heat-up time ΔT 65°C	hours	N/A	N/A	N/A
Thermostat set point	°C	75	75	75
Heat loss-EN 12897	watt	52	64	84
AEC (energy consumption)	kW/year	N/A	N/A	N/A
Energy efficiency	%	N/A	N/A	N/A
Tapping profile	3XS–XXL	N/A	N/A	N/A
Energy rating	A+–F	B	C	C

Advantages

MORE HOT WATER
Substantially higher temperature (70°C+), highly efficient mixing valve (no scolding), minimal heat loss and optimal design features gives up to 20 % more hot water and class leading capacity.

PRO INSULATION
The use of NANOPUR™ with insulation values far surpassing Pentane, often in combination with VACUUM panels, ensures minimum heat loss and class leading energy efficiency.

STRONGER
EVERLAST™ titanium alloyed stainless steel in combination with OSO’s unique ULTRAWELD™ system and state-of-the-art passivation process equals class leading corrosion resistance.

LIGHTER
EVERLAST™ titanium alloyed, high tensile strength, stainless steel equals lower weight and efficient use of resources. OSO products are more than 40 % lighter than enameled products.

BUILT TO LAST
INCOTEC™ el. immersion heaters with ultra high-grade Incoloy 825 stainless, DZR brass, zinc-free soldering and carefully calculated surface loads results in maximum durability in hard water.

Documents

Download manual here
