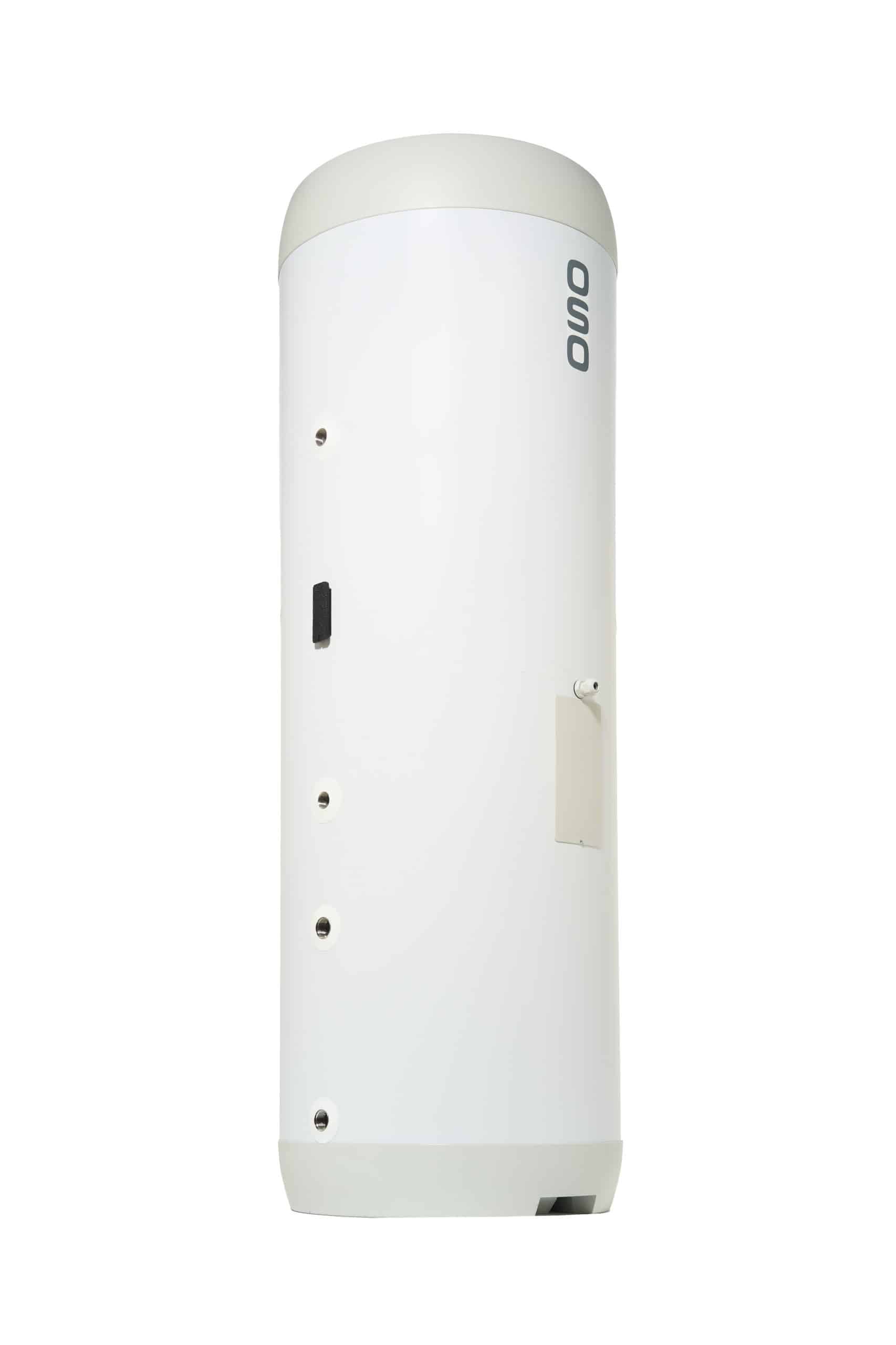

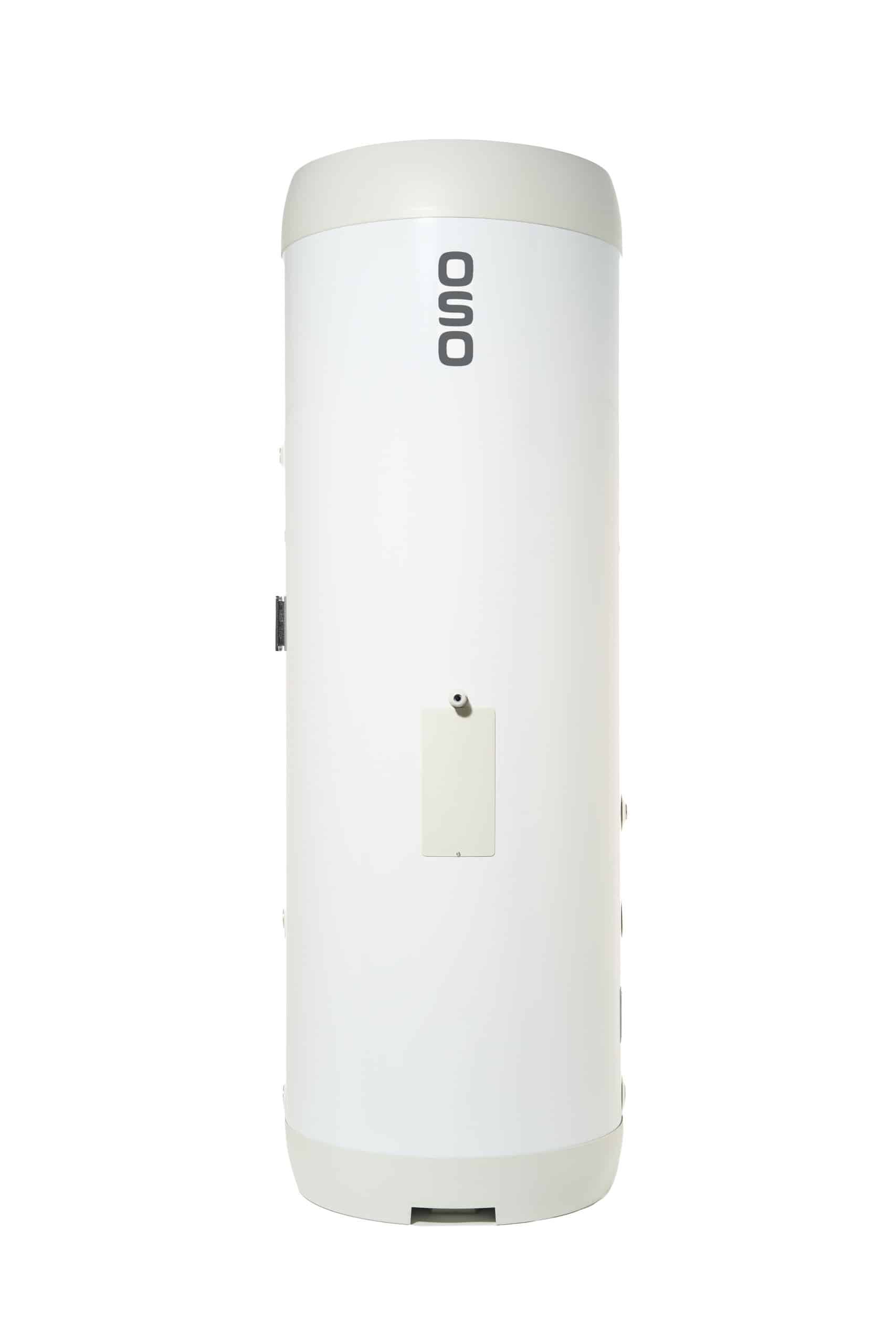

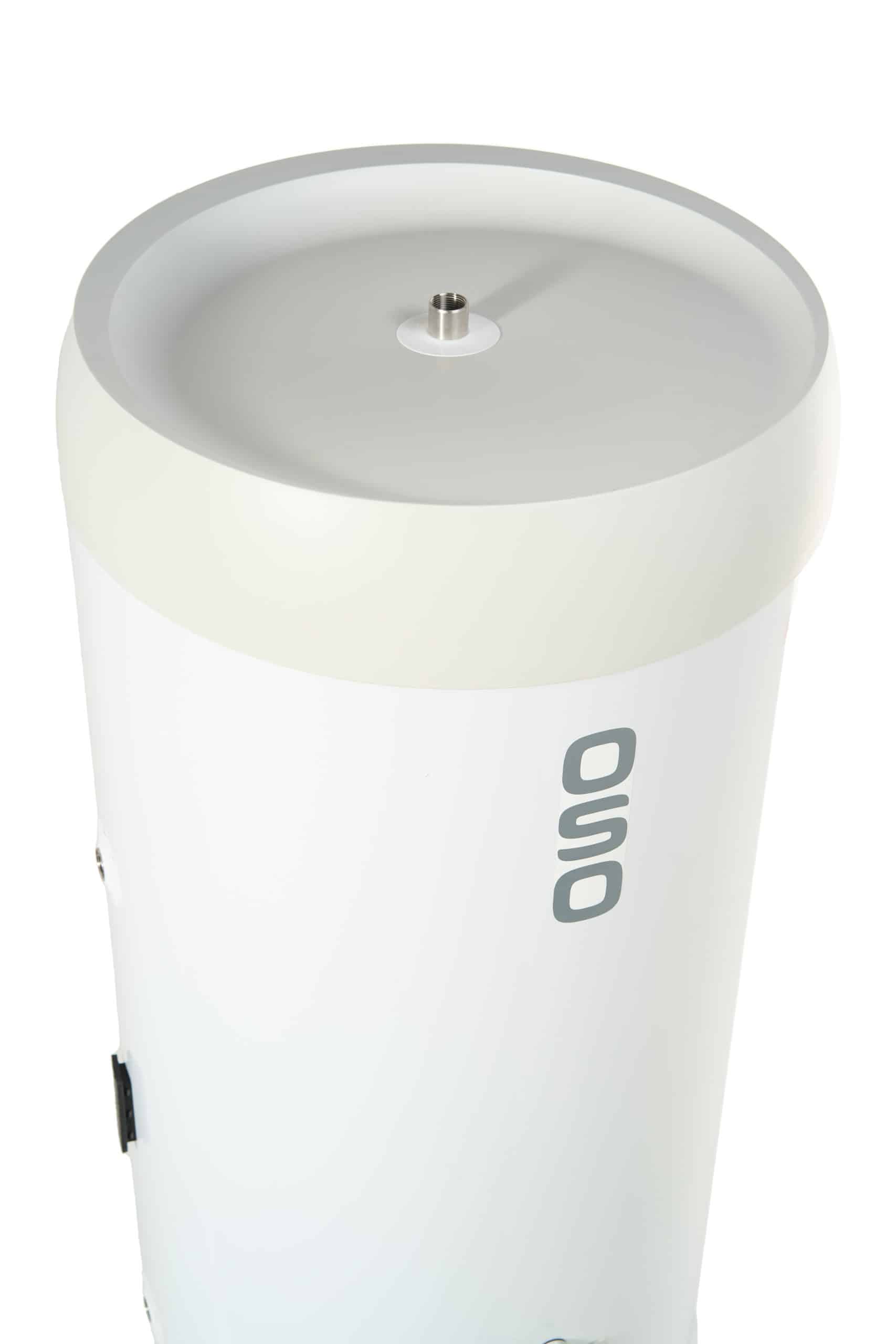

OSO OPTIMA GEOCOIL OGC

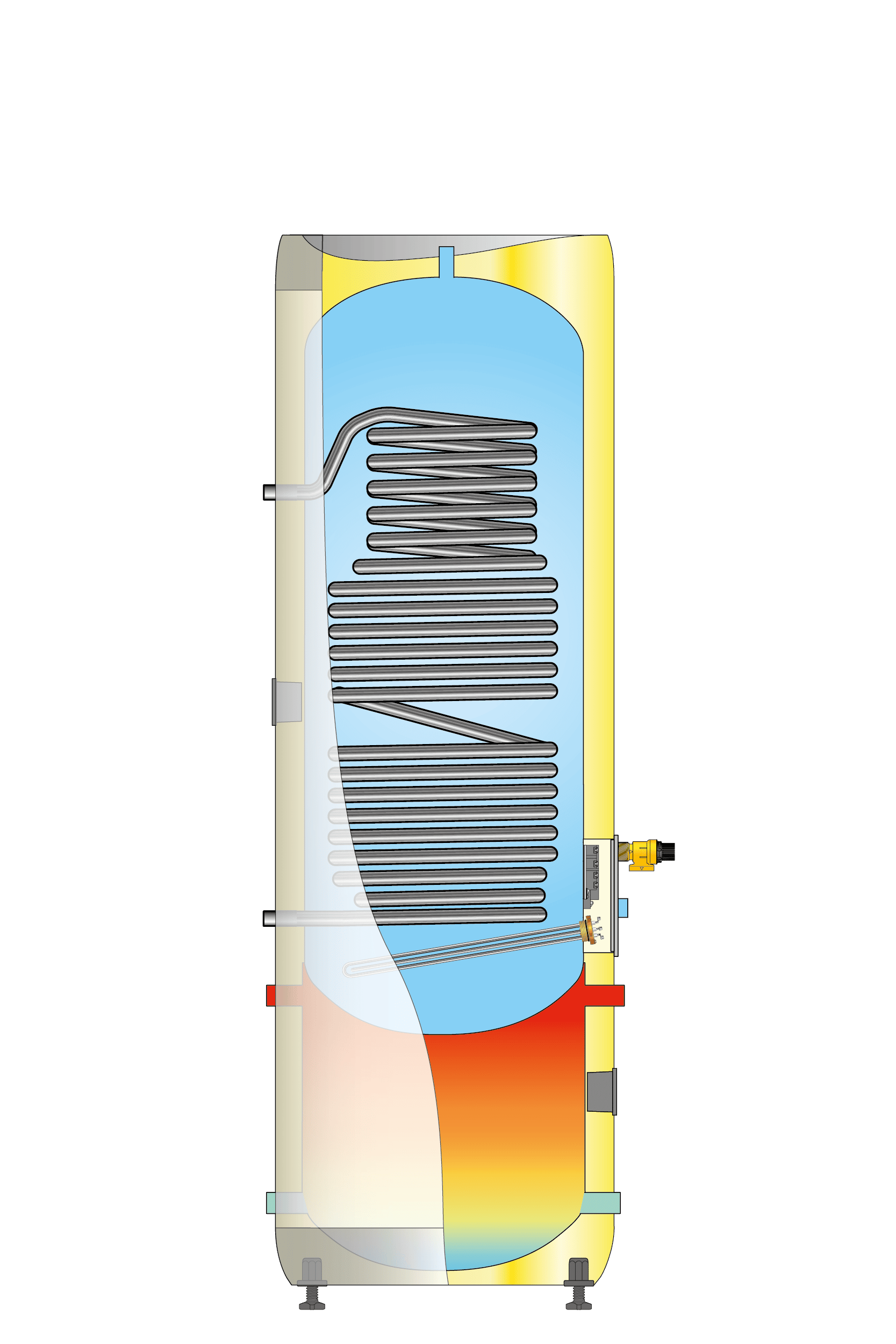

Tank-in-tank unit with domestic hot
water and buffer tank integrated
OPTIMA GEOCOIL – OGC – features high efficiency and fast recovery times, and covers the hot water demand for at least 5 people as well as heating demand in homes up to 400m2 in a single unit. OPTIMA COIL is suitable for heat pumps up to 12 kW, by way of the stainless steel tube heat exchanger with a large surface area of 1.8m2 in the DHW tank. OPTIMA GEOCOIL also
features an electric heating element at the bottom of the DHW tank for maximum protection against legionella (must be controlled externally). The heater can also be used as a backup for the heat pump. The buffer tank in stainless steel is 62 L, perfect for heat pumps of this size.
OPTIMA is the market’s most advanced and energy efficient tank-in-tank products, with class-leading
PUR insulation and patented solutions to increase hot water production from heat pumps. The OPTIMA series integrates both a stainless steel buffer tank and heat exchangers in one unit, and takes up minimal space.
WHY CHOOSE OPTIMA GEOCOIL?
- Save approx. 650 kWh / year vs. glass wool insulated products
- Integrated heat exchanger for heat pump ≤ 12 kW
- Integrated stainless buffer tank saves floor space
 | ||
| Specifications | UNIT | OGC 300 – 3 kW/1x230V+HX1.8m² |
|---|---|---|
| Identification | ||
| Product no. | OSO | 1 1 009 417 |
| Product name | OGC 300 - 3 kW/1x230V+HX1.8m² | |
| Usage | Not applicable | |
| Placement | Floor | |
| Dimensions | ||
| Diameter — ⌀ | mm | 595 |
| Height - H | mm | 1760 |
| Weight | kg | 68 |
| Packaging | mm | N/A |
| Freight volume | dm3 | 0.64 |
| Technical/ErP information | ||
| Capacity | persons | N/A |
| Capacity 40°C | L | 375 |
| Volume | L | 233/62 |
| Heat-up time ΔT 65°C | hours | N/A |
| Thermostat set point | °C | 75 |
| Heat loss-EN 12897 | watt | 54 |
| AEC (energy consumption) | kW/year | N/A |
| Energy efficiency | % | N/A |
| Tapping profile | 3XS–XXL | N/A |
| Energy rating | A+–F | B |
Advantages
MORE HOT WATER
Substantially higher temperature (70°C+), highly efficient mixing valve (no scolding), minimal heat loss and optimal design features gives up to 20 % more hot water and class leading capacity.
PRO INSULATION
The use of NANOPUR™ with insulation values far surpassing Pentane, often in combination with VACUUM panels, ensures minimum heat loss and class leading energy efficiency.
STRONGER
EVERLAST™ titanium alloyed stainless steel in combination with OSO’s unique ULTRAWELD™ system and state-of-the-art passivation process equals class leading corrosion resistance.
LIGHTER
EVERLAST™ titanium alloyed, high tensile strength, stainless steel equals lower weight and efficient use of resources. OSO products are more than 40 % lighter than enameled products.
BUILT TO LAST
INCOTEC™ el. immersion heaters with ultra high-grade Incoloy 825 stainless, DZR brass, zinc-free soldering and carefully calculated surface loads results in maximum durability in hard water.
