OSO NANO N

Fits everywhere

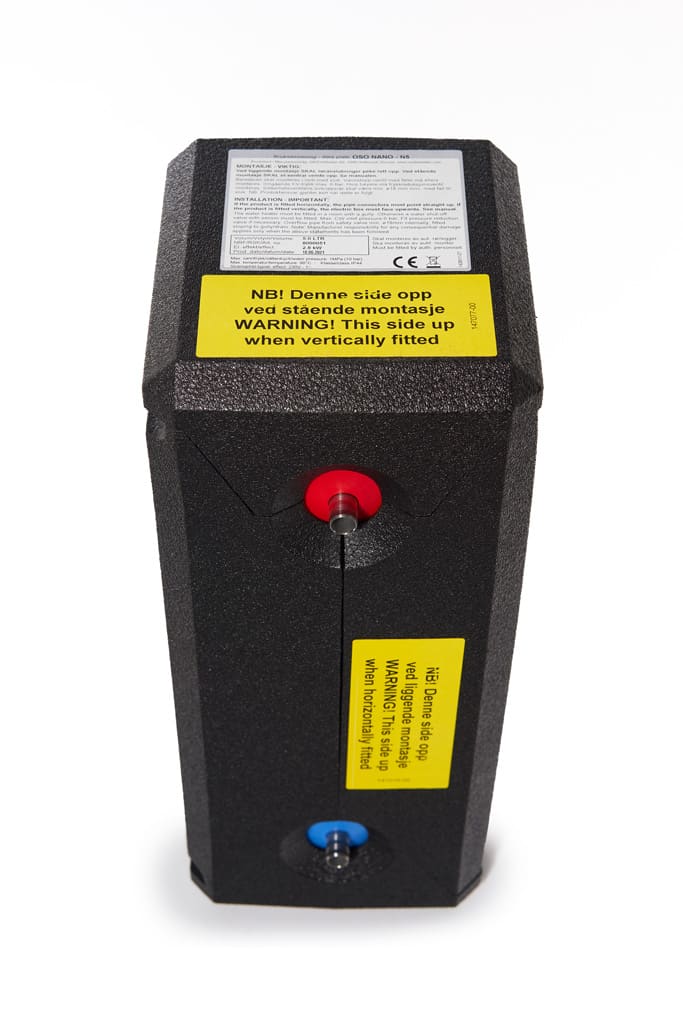

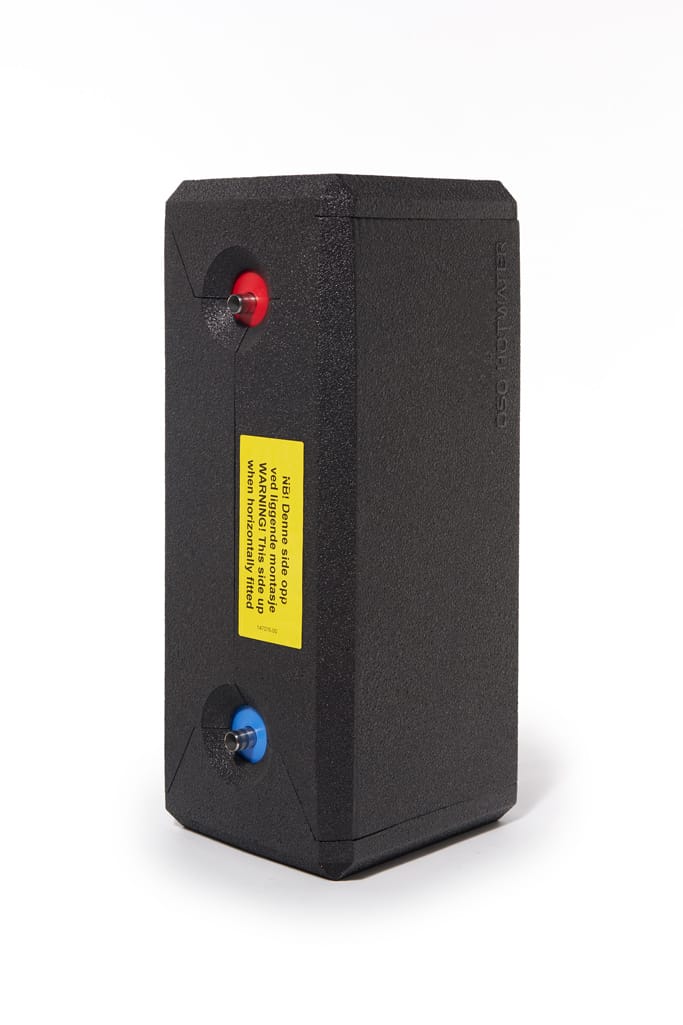

NANO – N – is perfect as a point-of-use water heater in case of extensive pipe runs, or for small hot water needs in bathrooms, cabins and dormitories. The tapping capacity is 7 liters of 40 °C hot water – more than enough for hand washing, small dishes or the like. NANO features a 3 kW heating element and is ready for use again in just 12 minutes after discharge.Capacity per hour is 75 L 40 °C hot water.NANO is only slightly larger than a A4 sheet,and is mounted upright (20 % higher capacity)
or horizontally at the point-of-use.

NANO is our smallest hot water series and is suitable as a point-of-use water heater. The series is constructed of 316 stainless steel, and NANO withstands most water qualities and can be mounted anywhere. Practical and space-saving design.

WHY CHOOSE NANO?

  • Perfect as a point-of-use water heater
  • Capacity 75 L 40 °C / hour, ready for use in 12 min.
  • The size of an A4 sheet and fits anywhere

Advantages

  • NANOPUR – Class-leading insulation
  • ULTRAWELD – Superior corrosion resistance
  • INCOTEC – High durability in hard water

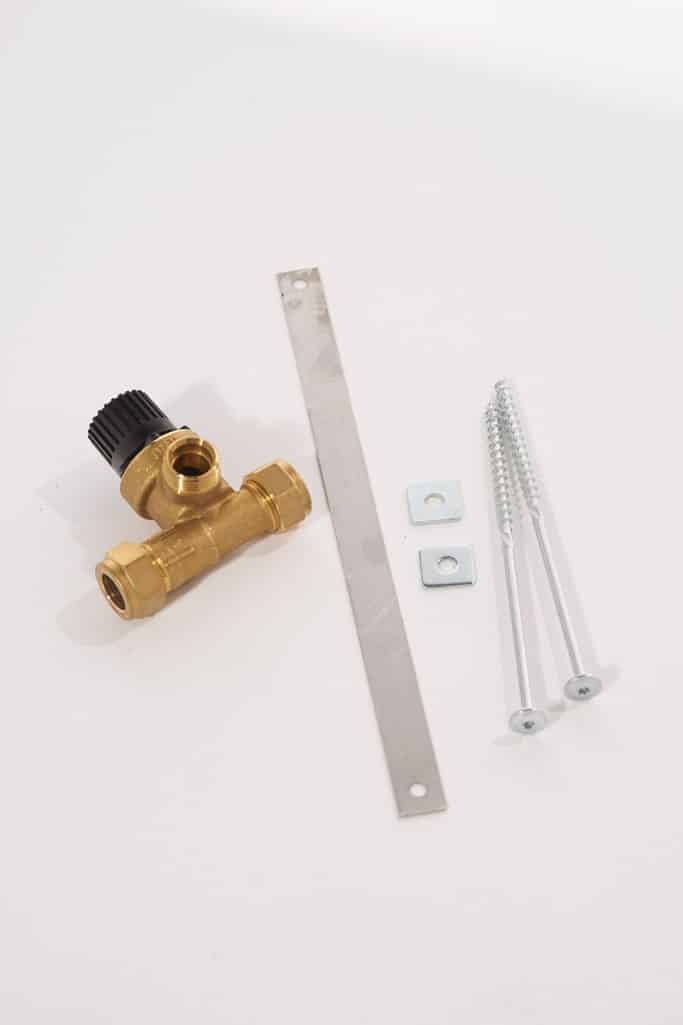

Key components

  • Thermostat – Adjustable 40 – 70 °C
  • Safety valve – 9 bar / G ½ ”M overflow
  • Power cable – 2.5 m. with schuko plug

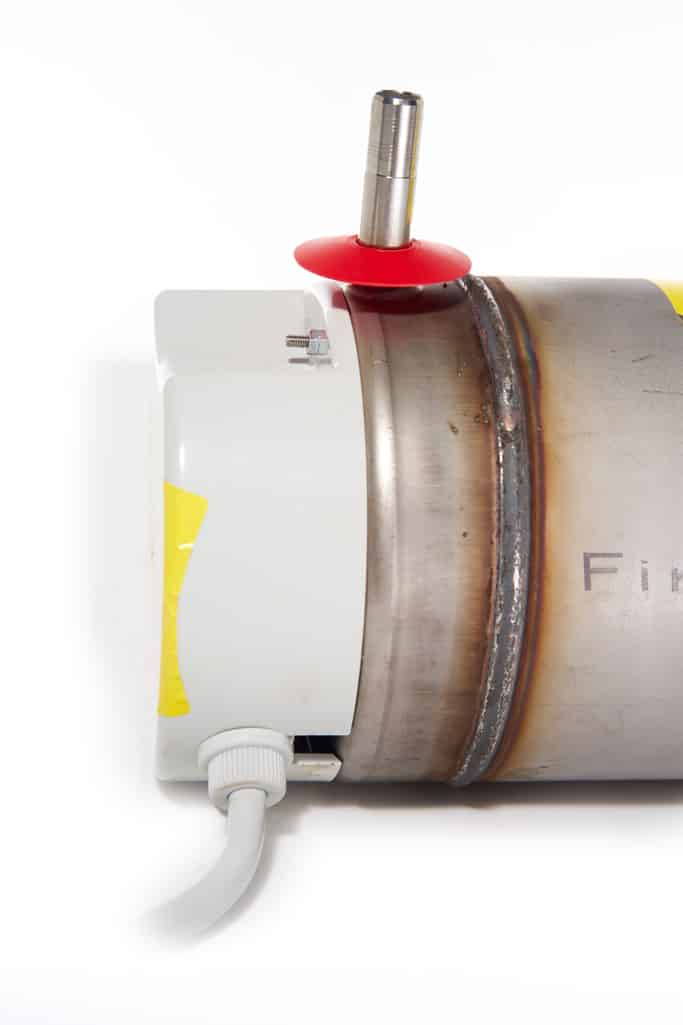

  • Heating element –G 1″M / limescale resistant
  • Wall bracket – Corrosion resistant

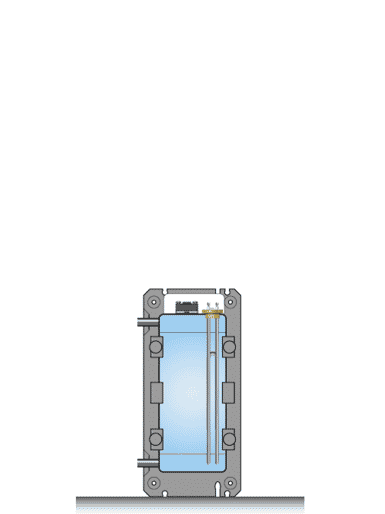

OSO NANO N5 SECTIONVIEW 300x300 1 2 e1613983702499
SpecificationsUNITN 5 – 2.8 kW/1x230V
Identification
Product no.OSO1 1 003 120
Product nameN 5 - 2.8 kW/1x230V
UsageN/A
PlacementFloor or wall
Dimensions
Diameter — ⌀mm200 x 234
Height - Hmm500
Weightkg8
Packagingmm550 × 255 × 255
Freight volumedm30.03
Technical/ErP information
Capacitypersons0.5
Capacity 40°CL7
VolumeL6
Heat-up time ΔT 65°ChoursN/A
Thermostat set point°C60
Heat loss-EN 12897watt13
AEC (energy consumption)kW/year525
Energy efficiency%35
Tapping profile3XS–XXLN/A
Energy ratingA+–FA

Advantages

MORE HOT WATER
Substantially higher temperature (70°C+), highly efficient mixing valve (no scolding), minimal heat loss and optimal design features gives up to 20 % more hot water and class leading capacity.

PRO INSULATION
The use of NANOPUR™ with insulation values far surpassing Pentane, often in combination with VACUUM panels, ensures minimum heat loss and class leading energy efficiency.

STRONGER
EVERLAST™ titanium alloyed stainless steel in combination with OSO’s unique ULTRAWELD™ system and state-of-the-art passivation process equals class leading corrosion resistance.

LIGHTER
EVERLAST™ titanium alloyed, high tensile strength, stainless steel equals lower weight and efficient use of resources. OSO products are more than 40 % lighter than enameled products.

BUILT TO LAST
INCOTEC™ el. immersion heaters with ultra high-grade Incoloy 825 stainless, DZR brass, zinc-free soldering and carefully calculated surface loads results in maximum durability in hard water.
