OSO DELTA GEOCOIL DGC

Custom designed for heat pumps up to 18 kW

DELTA GEOCOIL – DGC – is specifically designed for highly efficient hot water production for all types of heat pumps up to 18 kW (200 L = 15 kW / 300 L = 18 kW), thanks to the large heating surface (2.6 – 3.1m2) of the tube heat exchanger. DELTA GEOCOIL features an electric heating element at the bottom of the tank for maximum protection against legionella (must be controlled externally). The heater can also be used as a backup for the heat pump when needed, which provides maximum operational reliability.

DELTA is our most energy-efficient water heater series, and minimizes heat loss with best-inclass PUR insulation, vacuum panels and functional design. DELTA has been developed with a number of smart technical solutions especially suitable for alternative energy sources such as heat pumps or solar collectors.DELTA also features unique corrosion protection technology.

WHY CHOOSE DELTA GEOCOIL?

  • Save approx. 650 kWh / year vs. glass wool insulated products
  • Integrated heat exchanger for heat pump ≤ 18 kW
  • Unique corrossion resistance features

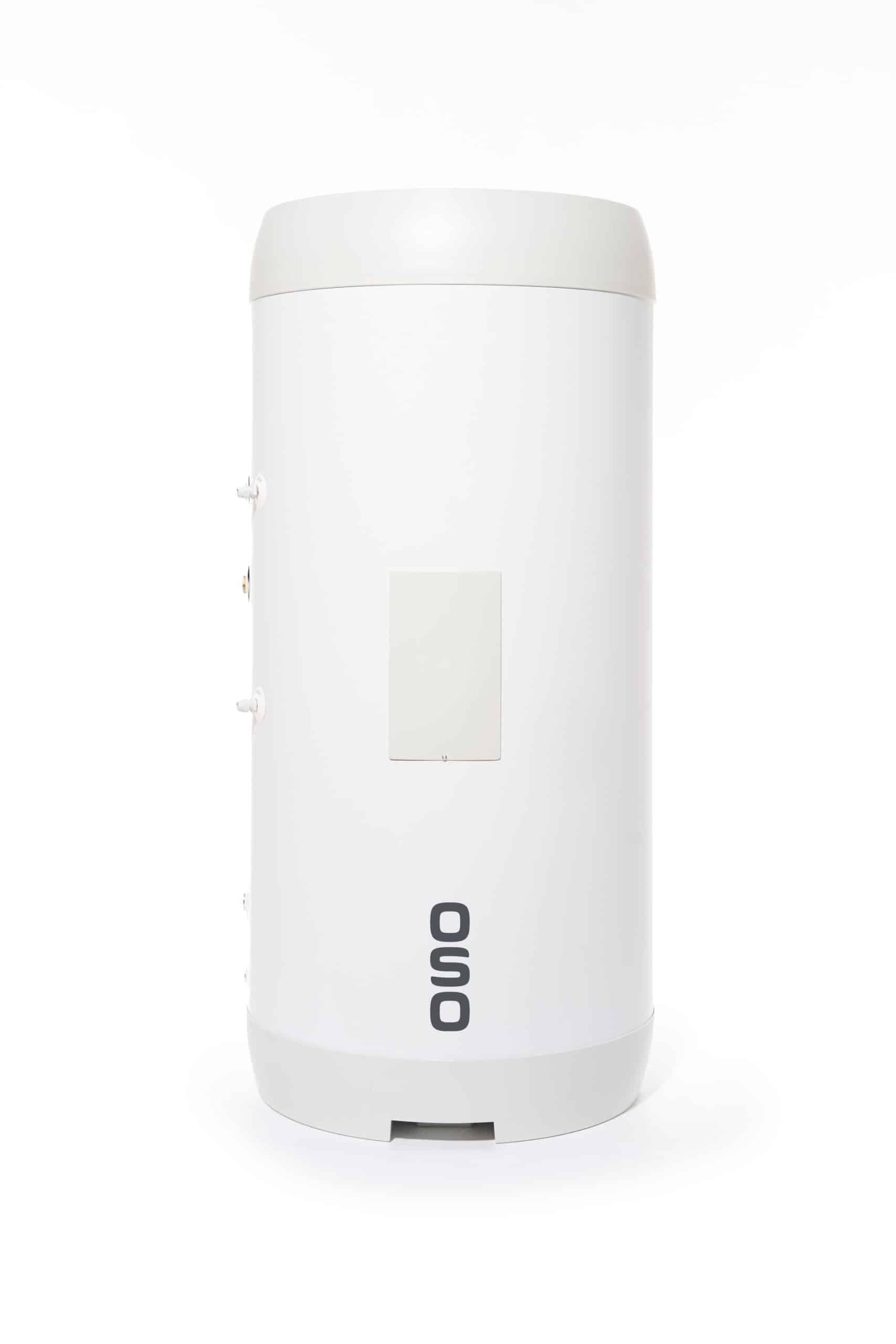

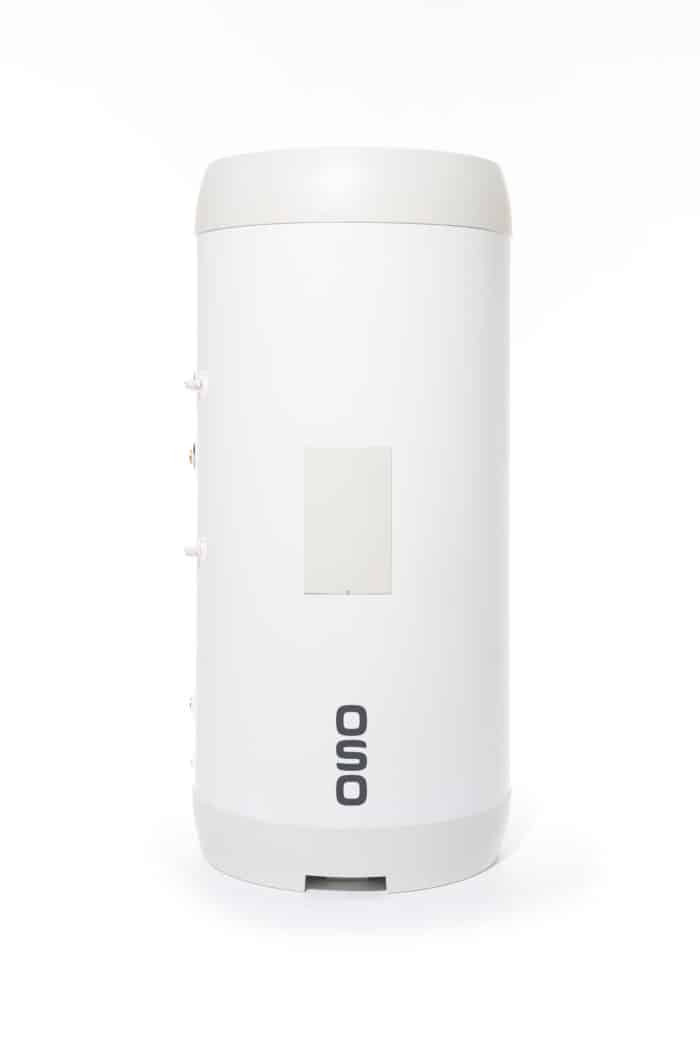

Water Heater Delta Geocoil DGC 200 OSO Hotwater

ADVANTAGES

  • DELTA DESIGN - Elegant and functional
  • NANOPUR - Class-leading insulation
  • VACUUM - Ultimate performance
  • ULTRAWELD - Superior corrosion resistance
  • INCOTECINCOTEC - High durability in hard water - Best mot kalkholdig vann
  • ECO–HOTWATER - DHW from alternative energy

IMPORTANT EQUIPMENT

  • Thermostat – Adjustable 50 - 75 °C
  • Safety valve – 9 bar / 90 °C / G ½ ”M overflow
  • Heating element – G 1.¼"M / limescale resistant
  • Sensor pockets – 2 pcs. for 6/8 mm. sensor
  • Appliance feet – Adjustable 0 - 40 mm.
Weight 200 kg
Dimensions 3 cm
DGC 200 snitt side 2 DGC 250 snitt 2023 DGC 300 snitt 2023 1
SpecificationsUNITDGC 200 – 2.8 kW/1x230V + HX 2.6m²DGC 250 – 2.8 kW/1x230V + HX 2.6m²DGC 300 – 2.8 kW/1x230V + HX 3.1m²
Identification
Product no.OSO1 1 003 1381 1 003 1391 1 003 141
Product nameDGC 200 - 2.8 kW/1x230V + HX 2.6m²DGC 250 - 2.8 kW/1x230V + HX 2.6m²DGC 300 - 2.8 kW/1x230V + HX 3.1m²
UsageN/AN/AN/A
PlacementFloorFloorFloor
Dimensions
Diameter — ⌀mm595 595595
Height - Hmm127015401750
Weightkg537385
PackagingmmN/AN/AN/A
Freight volumedm30.480.570.64
Technical/ErP information
CapacitypersonsN/AN/AN/A
Capacity 40°CLN/AN/AN/A
VolumeL191245282
Heat-up time ΔT 65°ChoursN/A N/AN/A
Thermostat set point°C707070
Heat loss-EN 12897watt586268.5
AEC (energy consumption)kW/yearN/AN/AN/A
Energy efficiency%N/AN/AN/A
Tapping profile3XS–XXLN/AN/AN/A
Energy ratingA+–FBBB

Advantages

MORE HOT WATER
Substantially higher temperature (70°C+), highly efficient mixing valve (no scolding), minimal heat loss and optimal design features gives up to 20 % more hot water and class leading capacity.

PRO INSULATION
The use of NANOPUR™ with insulation values far surpassing Pentane, often in combination with VACUUM panels, ensures minimum heat loss and class leading energy efficiency.

STRONGER
EVERLAST™ titanium alloyed stainless steel in combination with OSO’s unique ULTRAWELD™ system and state-of-the-art passivation process equals class leading corrosion resistance.

LIGHTER
EVERLAST™ titanium alloyed, high tensile strength, stainless steel equals lower weight and efficient use of resources. OSO products are more than 40 % lighter than enameled products.

BUILT TO LAST
INCOTEC™ el. immersion heaters with ultra high-grade Incoloy 825 stainless, DZR brass, zinc-free soldering and carefully calculated surface loads results in maximum durability in hard water.

Documents

Download manual here

Download OSO DELTA GEOCOIL DGC manual
Assembly and spare parts
