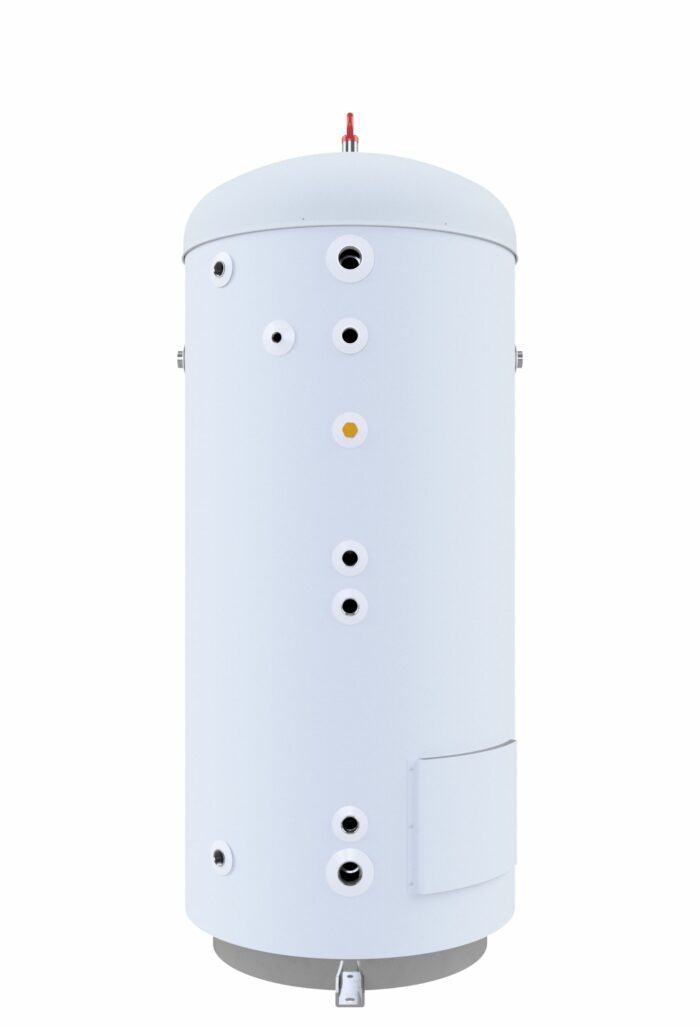

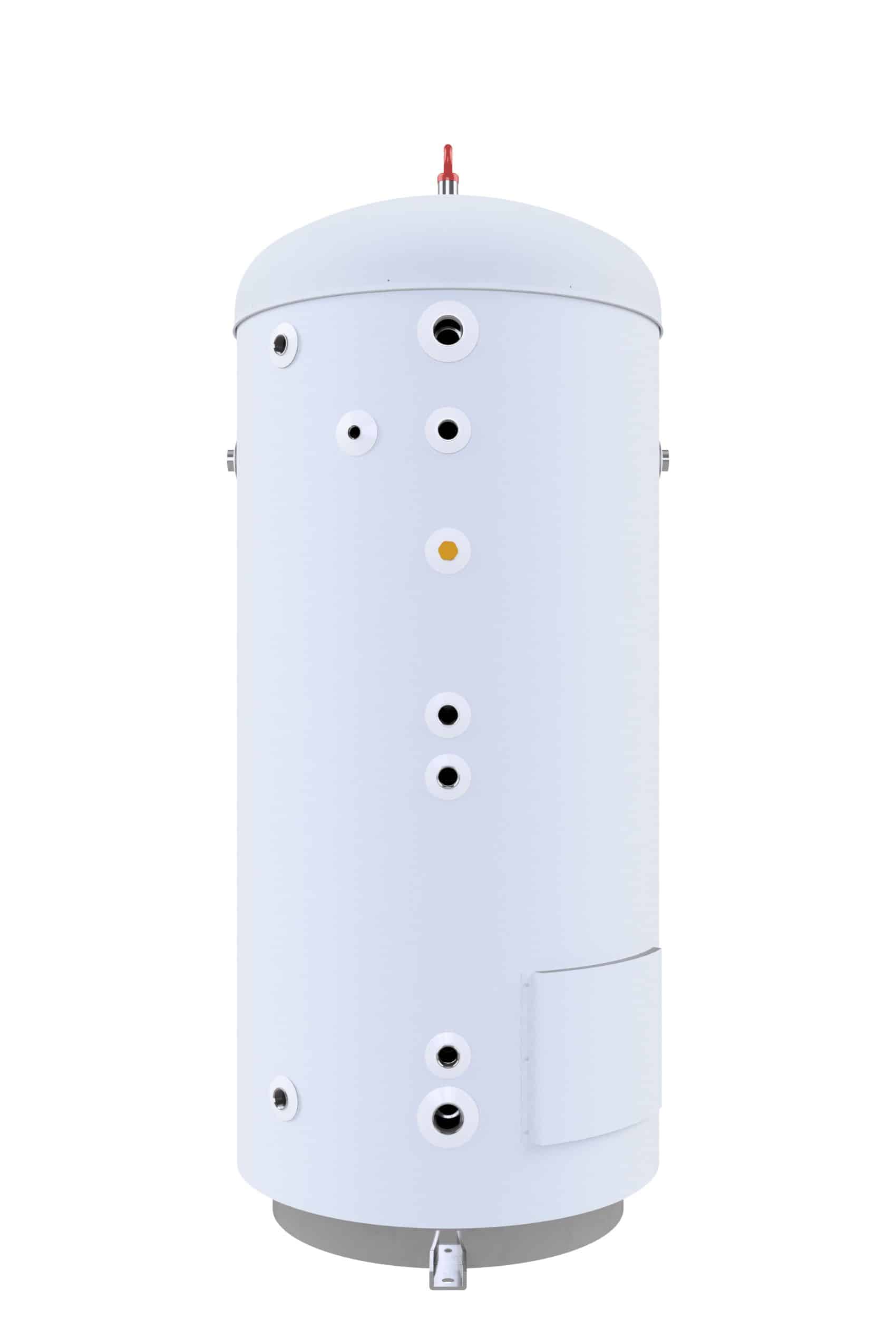

Maxi Marine Electric – MME

Unbeatable performance and lifetime economy.

Maxi Marine Electric – is suitable for most marine hot water applications, and is heated either
with the integrated electric INCOTEC immersion heaters, or via an external energy source and the TURBO MARINE SYSTEM with plate heat exchanger (optional capacity) and double sets of pumps for extra operational safety. The electric immersion heaters has customizable effect between 5–250kW, 230-690V. The MME is equipped with thermostats adjustable from 40-70°C as standard. Thermostats 60-90°C is available as option. Please note that if 60-90°C thermostats are fitted the safety valve capacity must be recalculated to safeguard the higher energy output. Always ensure
that the safety valve capacity is sufficient for the total energy output of the fitted heat source
configuration. All configuration is available for customization. Inspection openings available on request.

Advantages

  • Configurable to your needs
  • Customizable electrical configuration (5–250 kW, 230-690V)
  • 10 bar design pressure and high temperature water storage
  • Class-leading corrosion resistance and long life expectancy
  • Increase capacity with the TURBO MARINE SYSTEM heat exchanger (add-on)
  • Flexible choice of energy source with TURBO MARINE SYSTEM (add-on)

Technical data

  • Max operating pressure: 10 bar
  • Max storage temperature: 90°C
  • Standard volumes: 120 L - 15 000 L (Volumes can be customized upon request.)
  • ISOFLEX insulation

Components

  • Safety Temperature & pressure valve 10 bar / 99°C (discharge capacity 146kW)
  • Thermostats: adjustable 40-70°C, preset 60°C
  • Heating elements: 3 x 5kW
  • Drain (see table on next page)
  • CW inlet/HW outlet (see table on next page)
  • Optional: Mixing valve & external heat exchanger: See separate marine add-ons on page 22 Standard components shown. All components are open to customer specifications.
Assembly and spare parts
