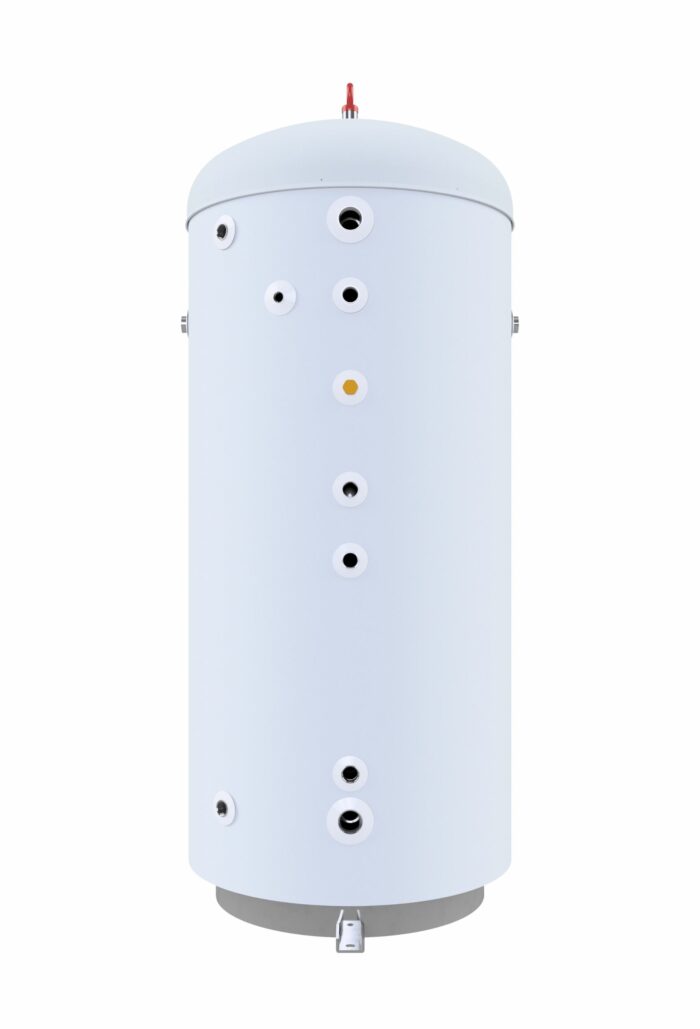

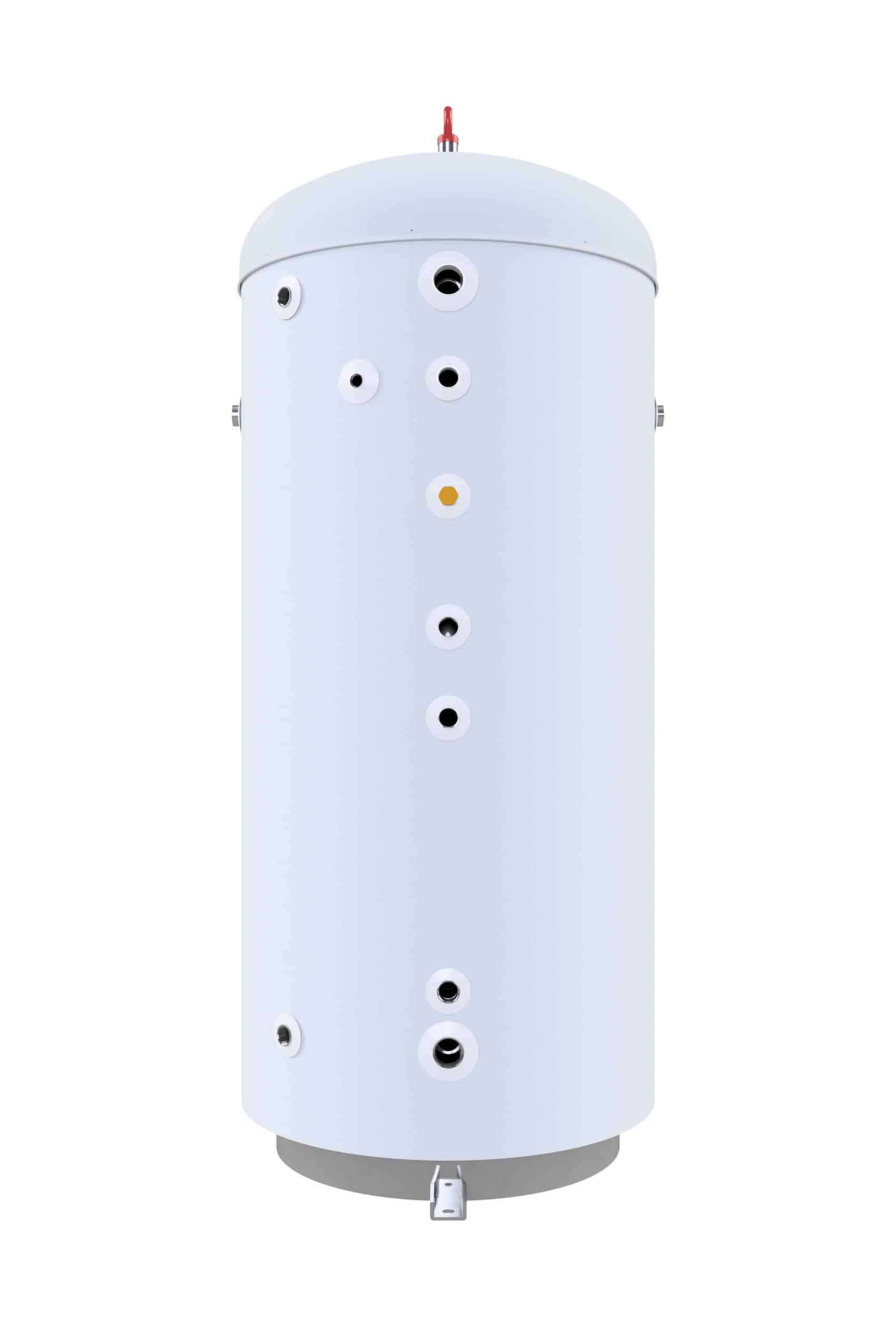

Maxi Marine Coil- MMC

Hot water storage tank with internal heat exchanger coil.

Maxi Marine Coil – MMC is able to supply most hot water requirements in marine installations. The MMC is fitted with a smooth surface, scale-resistant heating coil designed to efficiently supply hot water by utilising energy from an external heat source, such as surplus heat from the vessel engine cooling system. Always ensure that the safety valve capacity is sufficient for the total energy output of the fitted heating coil. All configuration is available for customization. Inspection openings available on request

Advantages

  • Configurable to your needs
  • Customizable scale resistant internal coil heat exchanger
  • 10 bar design pressure and high temperature water storage
  • Class-leading corrosion resistance and long life expectancy
  • Increase capacity with the TURBO MARINE SYSTEM heat exchanger (add-on)
  • Flexible choice of energy source with TURBO MARINE SYSTEM (add-on)

Technical data

  • Max operating pressure: 10 bar
  • Max storage temperature: 90°C
  • Standard volumes: 200 L - 15 000 L (Volumes can be customized upon request.)
  • ISOFLEX insulation

Components

  • Safety Temperature & pressure valve 10 bar / 99°C (discharge capacity 146kW)
  • Scale resistant HEX coil
  • Drain (see table on next page
  • CW inlet/HW outlet (see table on next page)
  • Optional: Mixing valve & external heat exchanger: See separate marine add-ons on page 22 Standard components shown. All components are open to customer specifications.
Assembly and spare parts
