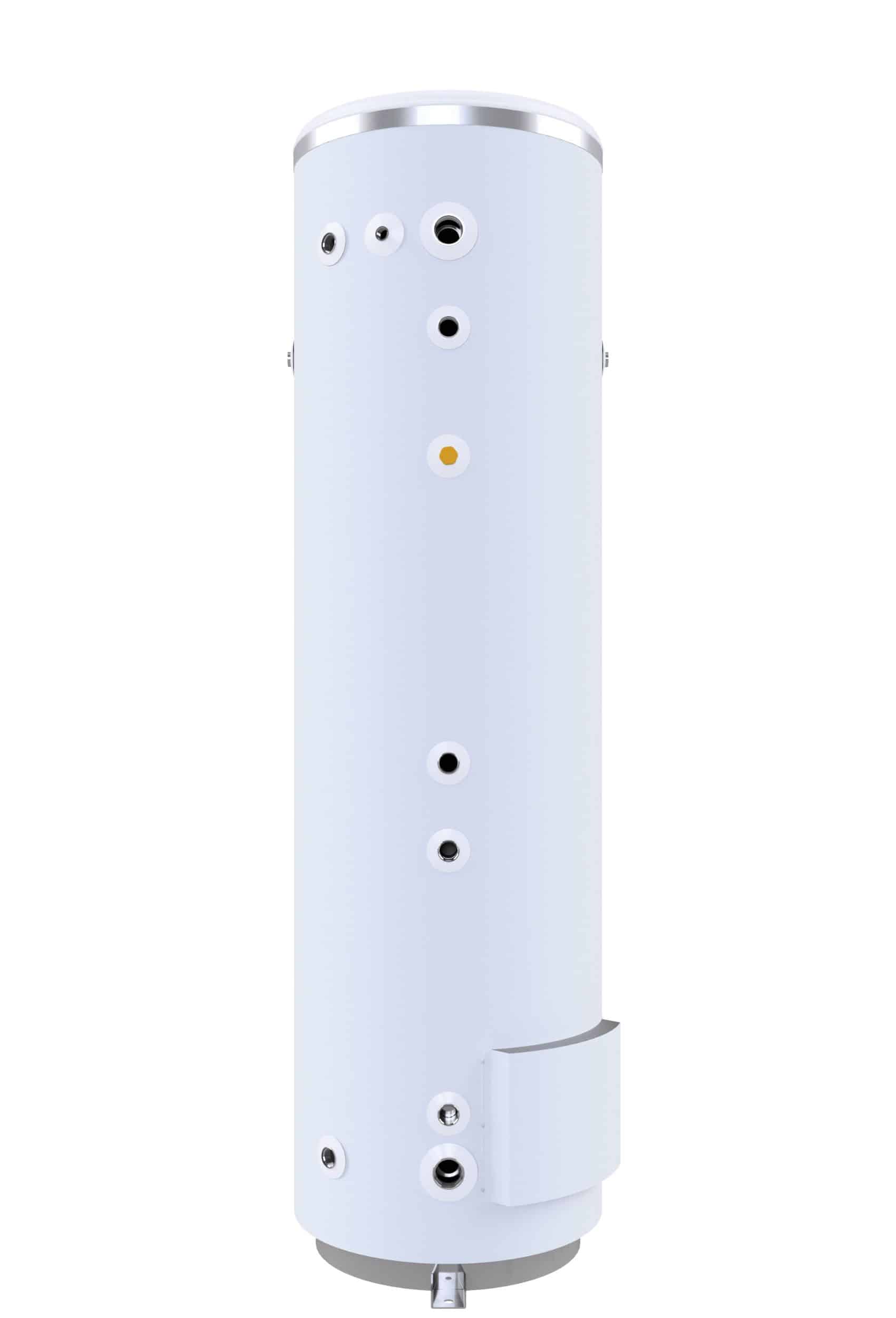

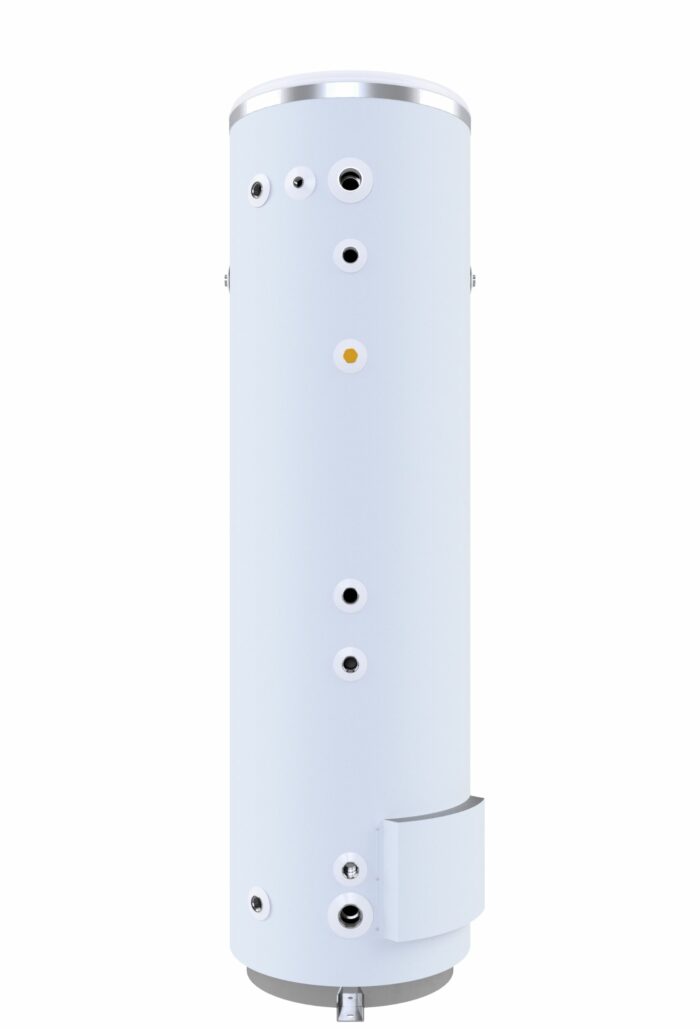

Maxi Marine Coil Electric – MMCE

Unbeatable performance and energy flexibility.

Maxi Marine Coil Electric – MMCE is suitable for most marine hot water applications, and is
heated either with the built-in smooth piped, scale-resistant heating coil, the integrated electric INCOTEC immersion heaters (configurable from 5–250 kW, 230-690V), or both in combination. This enables the use of an external energy source, such as surplus heat from the vessel engine cooling system. The MMCE is equipped with thermostats adjustable from 40-70°C as standard. Thermostats 60-90°C is available as option. Please note that if 60-90°C thermostats are fitted the safety valve capacity must be recalculated to safeguard the higher energy output. Always ensure that the safety valve capacity is sufficient for the total energy output of the electric elements and heating coil combined. All configuration is available for customization. Inspection openings available on request.

Advantages

  • Configurable to your needs
  • Customizable electrical configuration (5–250 kW, 230-690 V)
  • Customizable scale resistant internal coil heat exchanger
  • 10 bar design pressure and high temperature water storage
  • Class-leading corrosion resistance and long life expectancy
  • Increase capacity with the TURBO MARINE SYSTEM heat exchanger (add-on)
  • Flexible choice of energy source with TURBO MARINE SYSTEM (add-on)

Technical data

  • Max operating pressure: 10 bar
  • Max storage temperature: 90°C
  • Standard volumes: 200 L - 15 000 L (Volumes can be customized upon request.)
  • ISOFLEX insulation, Cellular rubber upon request

Components

  • Safety Temperature & pressure valve 10 bar / 99°C (discharge capacity 146kW)
  • Thermostats: adjustable 40-70°C, preset 60°C
  • Heating elements: 3 x 5kWp
  • Scale resistant HEX coil
  • Drain (see table on next page
  • CW inlet/HW outlet (see table on next page)
  • Optional: Mixing valve & external heat exchanger: See separate marine add-ons on page 22. Standard components shown. All components are open to customer specifications
Assembly and spare parts
