MAXI ACCU – MA COOL

Accumulator tank for cooling applications

MAXI ACCU COOL – MA – is the ideal accumulator tank for storage of cold water from room climate systems with cooling machines where the cold water tank provides the necessary buffer volume for the system. The excess heat from the cooling machinery can provide virtually free hot water, if an accumulator tank as a preheater is installed, for example, MAGC. MAXI ACCU COOL features 19 mm. closed cell-foam insulation to prevent condensation from forming on the cold tank surface. Thanks
to its low thermal conductivity and high resistance to water vapour diffusion, closed-cell foam insulation ensures high energy savings for the system. MAXI ACCU features dual sets of flow/return connections (400L = G2″F / 600L= DN80 / 1 000L = DN 100), which provide flexible connection and installation options, in addition to a separate G3/4″F connection for air vents, G1″M drain connection as well as G1/2″F sensor connection.

The commercial cylinders in the MAXI series have shown class-leading operational durability for commercial hot water systems through the last 50 years.

WHY MAXI ACCU COOL?

  • Superior energy-efficiency
  • Accumulators provides a stable hot water
  • 6 bar design pressure
  • Deliverable up to 10 000 liters on demand

Advantages

Components

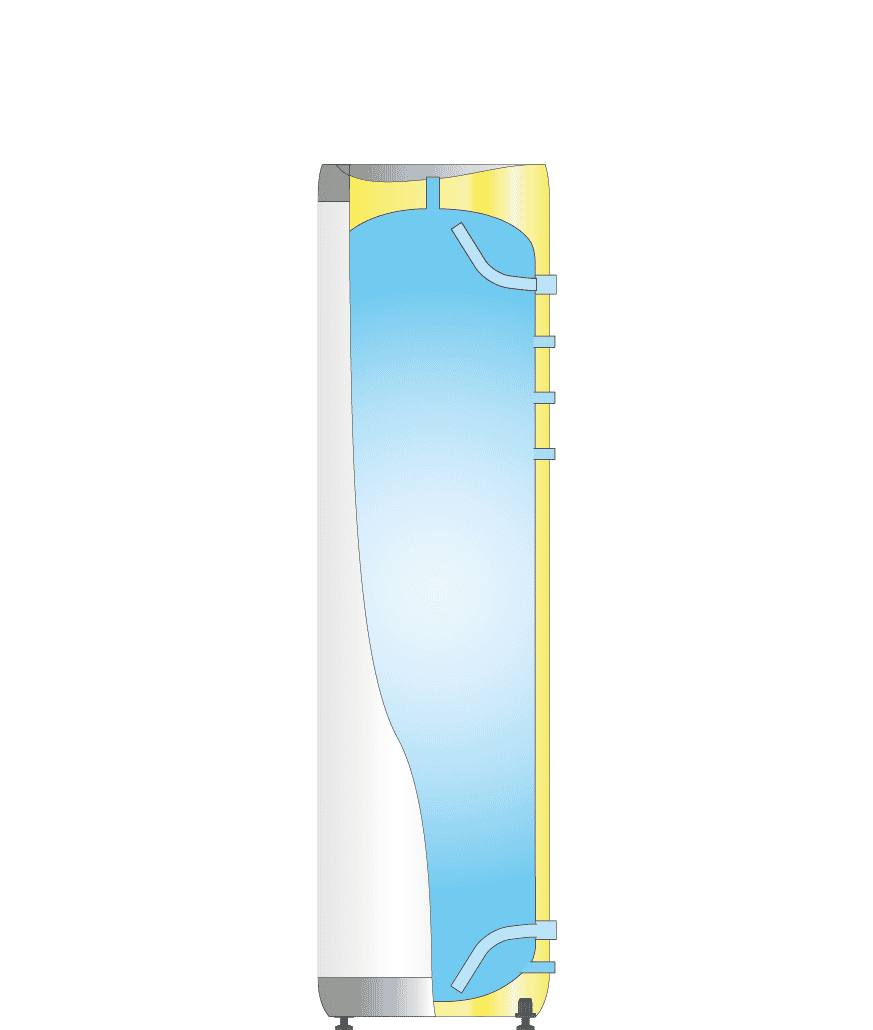

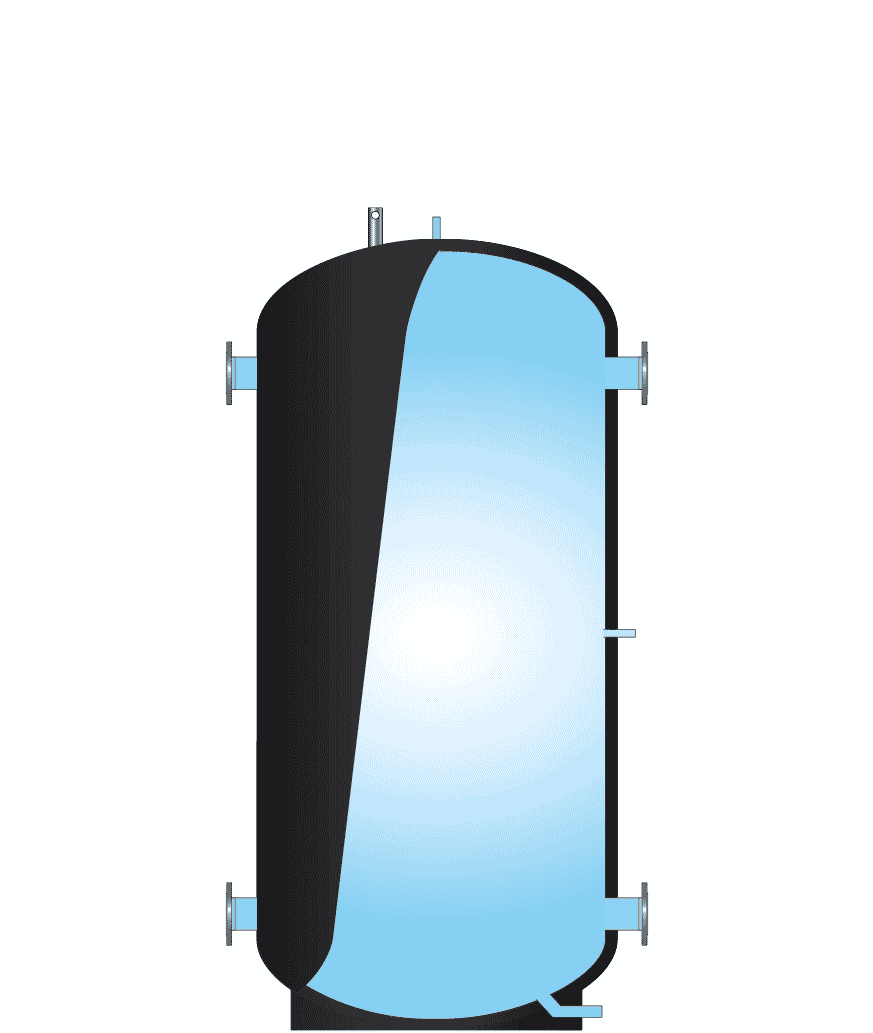

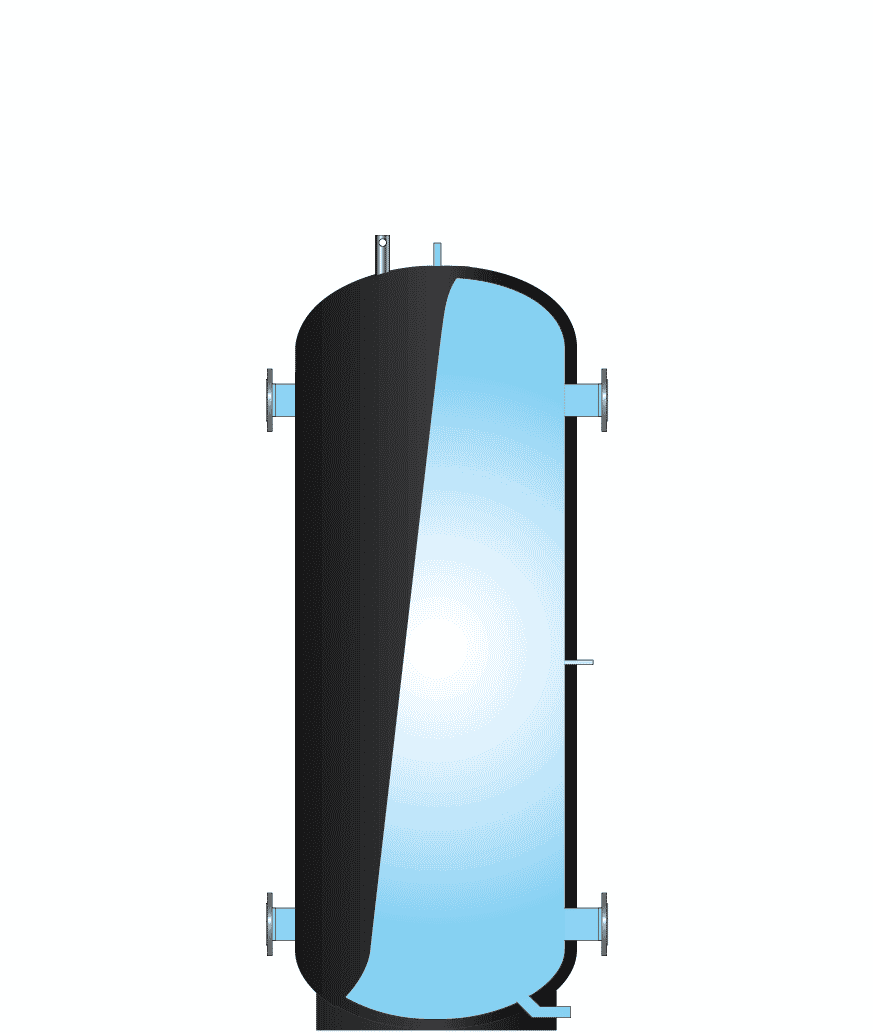

MAXI M400 SECTION VIEW SIDE e1612173301699 MAXI COOL MA600 SECTION VIEW SIDE e1612174088501 MAXI COOL MA1000 SECTION VIEW SIDE e1612174144960
SpecificationsUNITM 400MA 600 COOLMA 1000 COOL
Identification
Product no.OSO1 1 009 8661 1 003 3441 1 003 338
Product nameM 400MA 600 COOLMA 1000 COOL
UsageN/AN/AN/A
PlacementFloorFloorFloor
Dimensions
Diameter — ⌀mm595 8001000
Height - Hmm218020302120
Weightkg7898178
Packagingmm595 × 595 × 2240 N/AN/A
Freight volumedm30.81N/AN/A
Technical/ErP information
CapacitypersonsN/AN/AN/A
Capacity 40°CLN/AN/AN/A
VolumeL376570885
Heat-up time ΔT 65°ChoursN/AN/AN/A
Thermostat set point°CN/AN/AN/A
Heat loss-EN 12897watt89N/AN/A
AEC (energy consumption)kW/yearN/AN/AN/A
Energy efficiency%N/AN/AN/A
Tapping profile3XS–XXLN/AN/AN/A
Energy ratingA+–FCN/AN/A
