MAXI XPRESS - MX

Commrcial hot water cylinder with double immersion heater effect and faster heat-up times

The commercial hot water cylinders from the MAXI series has shown class-leading operational durability for commercial hot water systems through the last 50 years. MAXI has been constructed with EVERLAST™ high-alloy stainless steel in combination with ULTRAWELD™ technology for optimal corrosion resistance. MAXI series can be modified according to customer requirements.

The commercial hot water cylinder MAXI XPRESS — MX boasts twice the available immersion heater capacity as the standard, is heated either with the integrated electric INCOTEC immersion heaters, or via an external energy source and the TURBOSYSTEM with plate heat exchanger (optional capacity) and double sets of pumps for extra operational safety. The electric immersion heaters has optional effect 5–30 kW, 230–400 V + N 3-phase, and is thermostat controlled 60–90 °C in three steps with separate safety thermostats. Contactors are not required and the support cable is connected directly to the central. Installation kits for cold water inlet with shut-off valve, hot water outlet with mixing valve, plate heat exchanger with pumps (TURBOSYSTEM) and piping for connecting multiple units has been custom-made to fit directly on the MAXI series, with double sealing for an added layer of safety.

WHY CHOOSE MAXI XPRESS?
• Extreme operational durability with el. heaters w/o contactors
• Flexible choice of energy source with TURBOSYSTEM (add-on)
• 10 bar design pressure and class-leading corrosion resistance

Advantages

Components

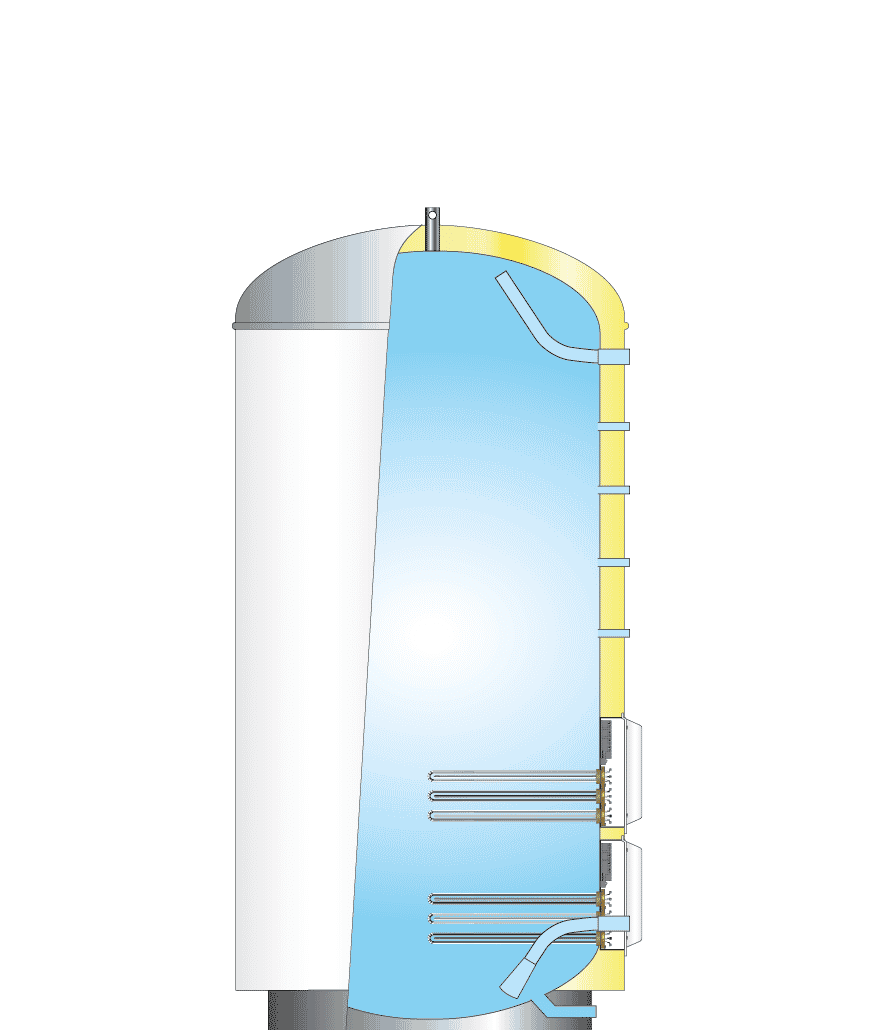

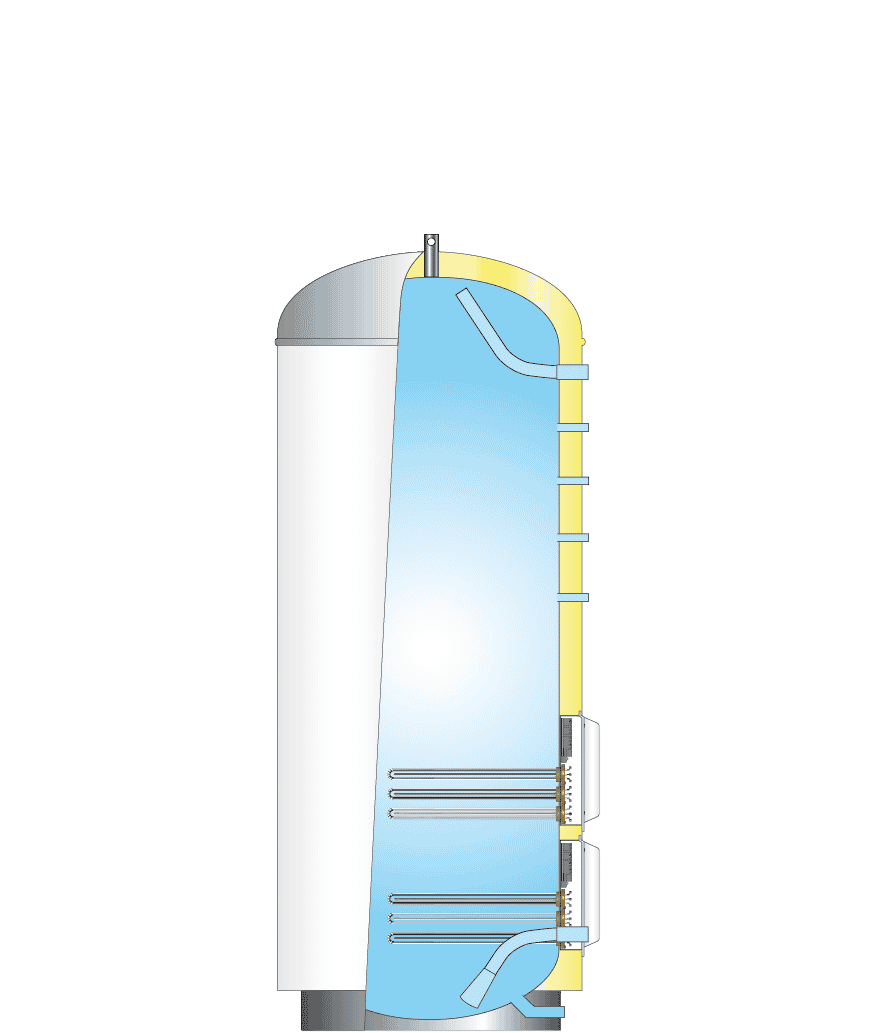

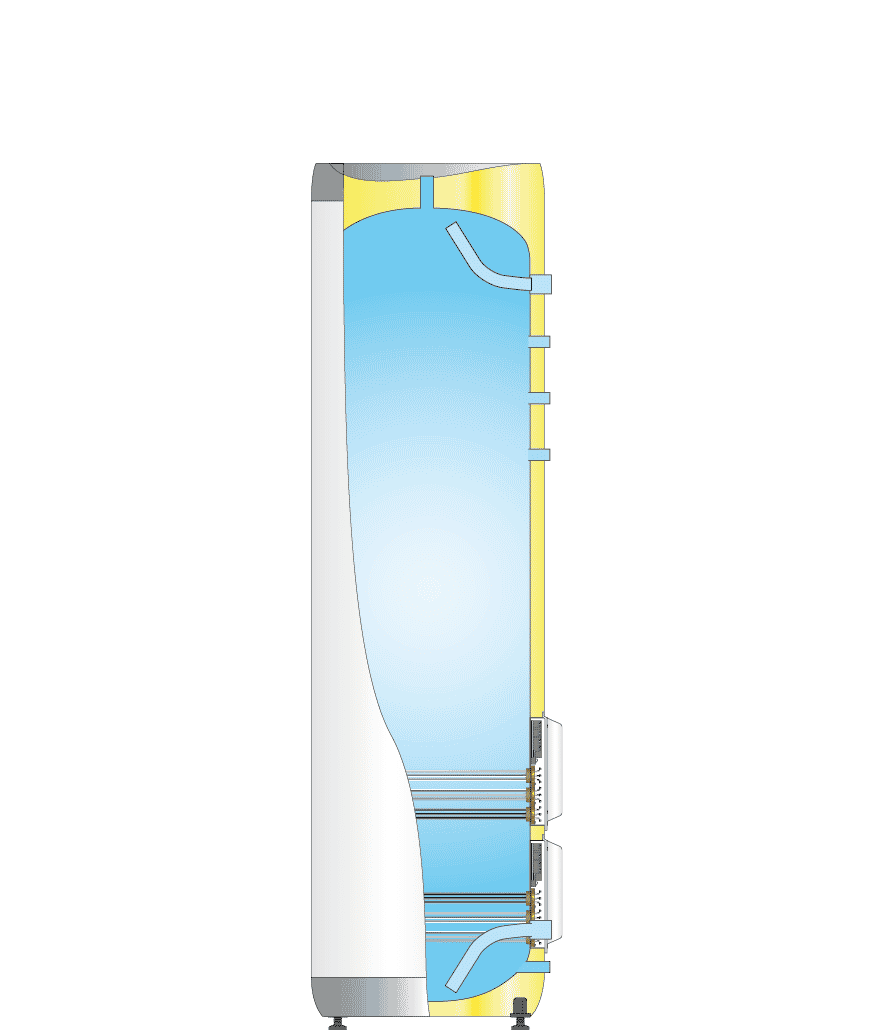

MAXI MX400 SECTION VIEW SIDE e1612171885894MAXI MX600 SECTION VIEW SIDE 1 e1612172041696MAXI MX1000 SECTION VIEW SIDE e1612172125259
SpecificationsUNITMX 400 - 15 + 15 kW / 3 × 230 VMX 600 - 15 + 15 kW / 3 × 230 VMX 1000 - 15 + 15 kW / 3 × 230 V
Identification
Product no.OSO8001652 8001653 8001654
Product nameMX 400 - 15 + 15 kW / 3 × 230 V MX 600 - 15 + 15 kW / 3 × 230 V MX 1000 - 15 + 15 kW / 3 × 230 V
UsageNot applicableNot applicableNot applicable
PlacementFloorFloorFloor
Dimensions
Diameter — ⌀mm580 780 1000
Height - Hmm2085 19002100
Weightkg85139244
Packagingmm595 × 595 × 2240 800 × 800 × 2000 1020 × 1020 × 2200
Freight volumedm378712802289
Technical/ErP information
CapacitypersonsNot ApplicableNot ApplicableNot Applicable
Capacity 40°CLNot applicable Not applicable Not applicable
VolumeL367583885
Heat-up time ΔT 65°ChoursN/AN/AN/A
Thermostat set point°C7575 75
Heat loss-EN 12897watt103155175
AEC (energy consumption)kW/yearNot applicableNot applicableNot applicable
Energy efficiency%Not applicableNot applicableNot applicable
Tapping profile3XS–XXLNot applicableNot applicableNot applicable
Energy ratingA+–FCCC

Advantages

MORE HOT WATER
Substantially higher temperature (70°C+), highly efficient mixing valve (no scolding), minimal heat loss and optimal design features gives up to 20 % more hot water and class leading capacity.

PRO INSULATION
The use of NANOPUR™ with insulation values far surpassing Pentane, often in combination with VACUUM panels, ensures minimum heat loss and class leading energy efficiency.

STRONGER
EVERLAST™ titanium alloyed stainless steel in combination with OSO’s unique ULTRAWELD™ system and state-of-the-art passivation process equals class leading corrosion resistance.

LIGHTER
EVERLAST™ titanium alloyed, high tensile strength, stainless steel equals lower weight and efficient use of resources. OSO products are more than 40 % lighter than enameled products.

BUILT TO LAST
INCOTEC™ el. immersion heaters with ultra high-grade Incoloy 825 stainless, DZR brass, zinc-free soldering and carefully calculated surface loads results in maximum durability in hard water.
