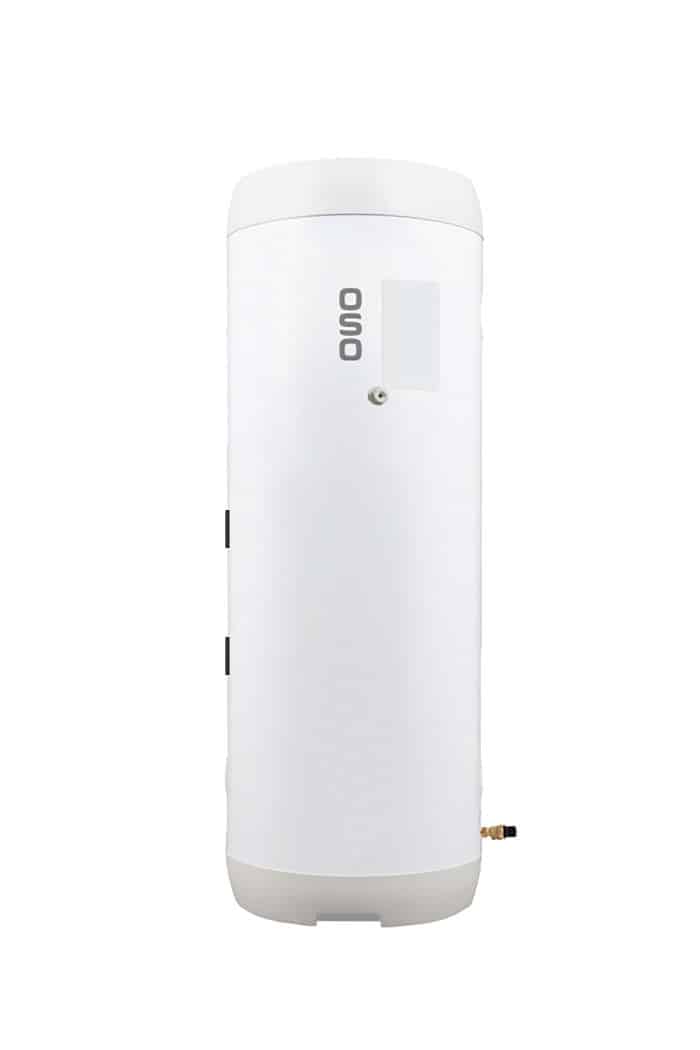

ACCU GEOCOIL - AGC

Accumulator tank with preheating and electrical elements

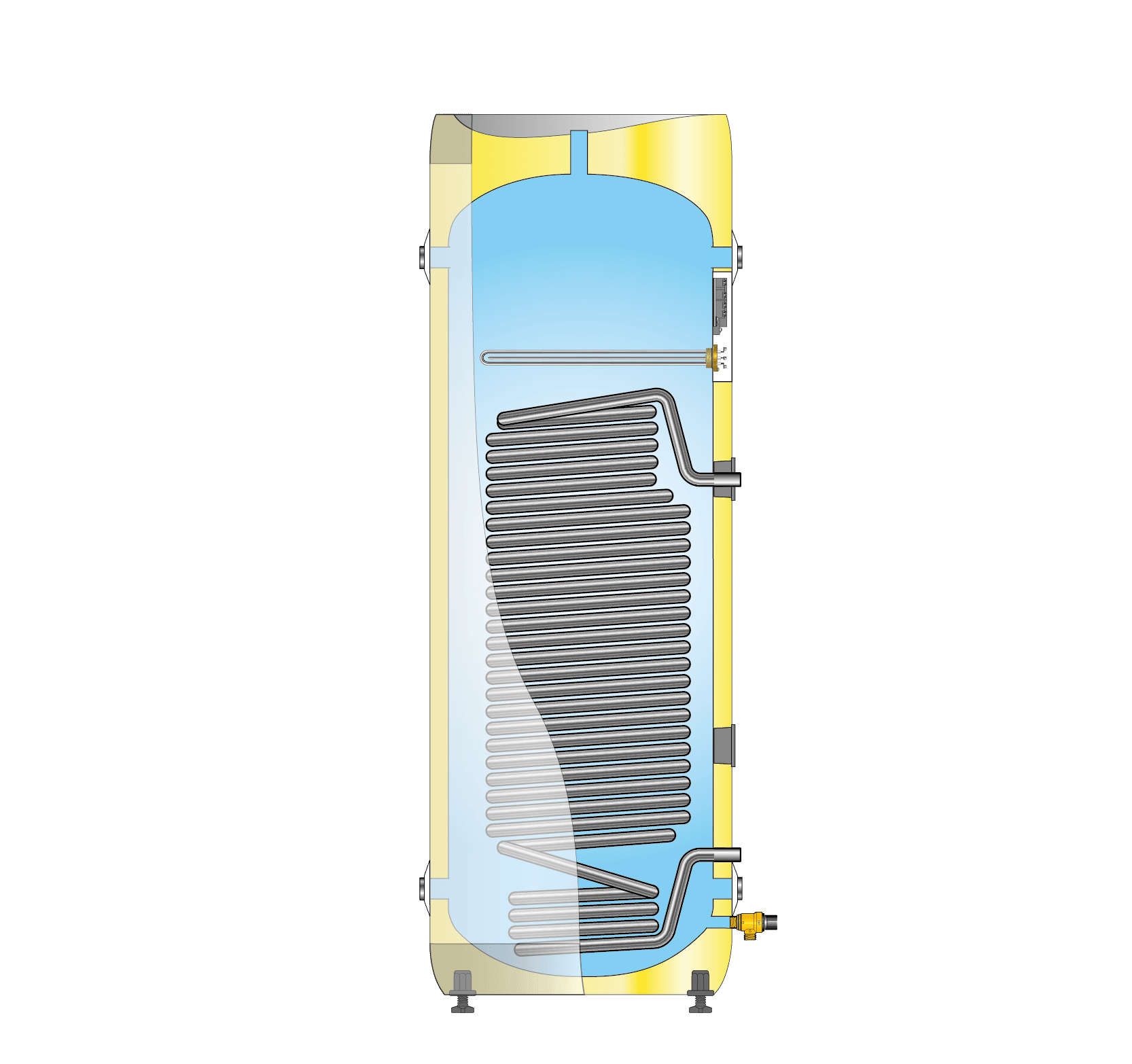

ACCU GEOCOIL – AGC – is specially designed as a heat accumulator tank for heat pump systems. ACCU GEOCOIL has an integrated heat exchanger with a large heating surface of 3.1 m² for preheating hot water and electrical elements for the heating system completely installed, which provides the opportunity for additional heat and security in the event of any operational problems at the energy source. The ACCU has a dual set of return connections, which provide flexible connection and placement options, in addition to a separate ø22 mm air connection and drain connection. ACCU ensures that the energy source has optimal operating conditions and provides a stable temperature for the plant. The choice of size depends on the heat pump’s needs and must be dimensioned in each individual case.

ACCU is a series of highly energy-efficient, foam-insulated buffer tanks for heating systems. ACCU is in stainless steel design which ensures a trouble-free system in relation to. buffer tanks in steel. ACCU uses the same stylish design as the DELTA (Ø595) series and fits perfectly into any heating system.

WHY CHOOSE ACCU GEOCOIL?

  • Provides optimal operating conditions for heat pump
  • Large preheating capacity of hot water increases COP
  • Electric supplementary heating and / or backup for heating system

ADVANTAGES

IMPORTANT EQUIPMENT

test 1 e1612277495376
SpecificationsUNITAGC 300 – 15 kW / 3 × 230 V + HX 2,6 m²
Identification
Product no.OSO8011312
Product nameAGC 300 – 15 kW / 3 × 230 V + HX 2,6 m²
Usage
Placement
Dimensions
Diameter — ⌀mm580
Height - Hmm1700
Weightkg72
Packagingmm
Freight volumedm30,62 m³
Technical/ErP information
Capacitypersons
Capacity 40°CL
VolumeL268
Heat-up time ΔT 65°Chours
Thermostat set point°C45 °C
Heat loss-EN 12897watt83
AEC (energy consumption)kW/year
Energy efficiency%
Tapping profile3XS–XXL
Energy ratingA+–FC

Advantages

MORE HOT WATER
Substantially higher temperature (70°C+), highly efficient mixing valve (no scolding), minimal heat loss and optimal design features gives up to 20 % more hot water and class leading capacity.

PRO INSULATION
The use of NANOPUR™ with insulation values far surpassing Pentane, often in combination with VACUUM panels, ensures minimum heat loss and class leading energy efficiency.

STRONGER
EVERLAST™ titanium alloyed stainless steel in combination with OSO’s unique ULTRAWELD™ system and state-of-the-art passivation process equals class leading corrosion resistance.

LIGHTER
EVERLAST™ titanium alloyed, high tensile strength, stainless steel equals lower weight and efficient use of resources. OSO products are more than 40 % lighter than enameled products.

BUILT TO LAST
INCOTEC™ el. immersion heaters with ultra high-grade Incoloy 825 stainless, DZR brass, zinc-free soldering and carefully calculated surface loads results in maximum durability in hard water.
