ADVANTAGES
- NANOPUR - Class-leading insulation
- CELLEGUMMI - Class leading insulation (600/1000 L)
- ULTRAWELD - Superior corrosion resistance
IMPORTANT EQUIPMENT
- Sensor pockets: 1 pc. for 6-8 mm. sensor
- Wall bracket: Corrosion resistant

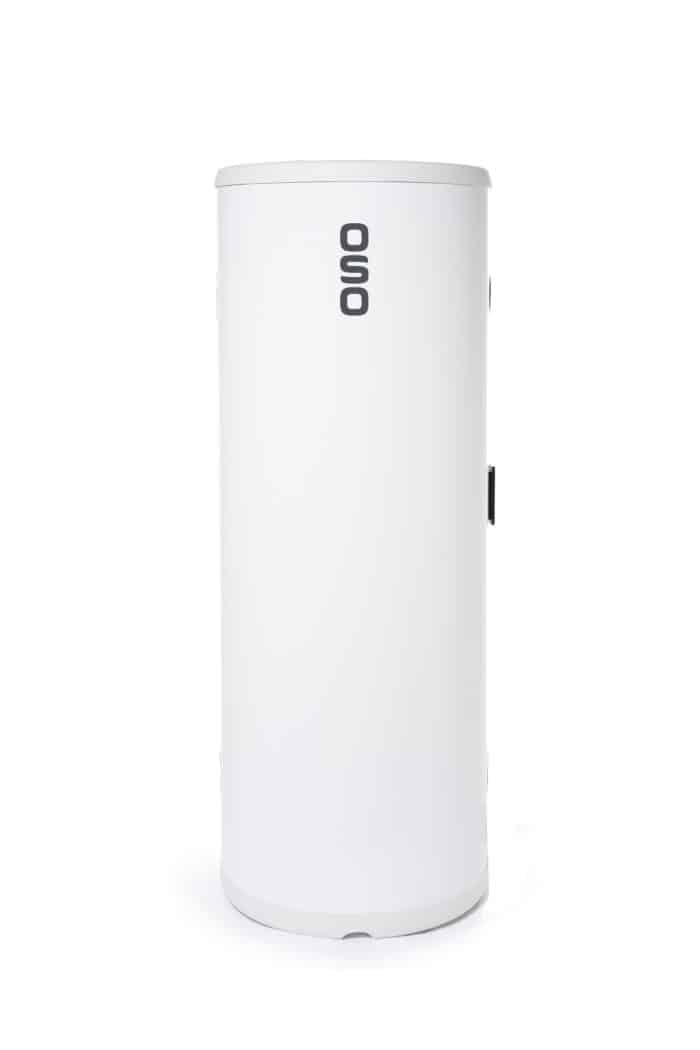

ACCU – A
Buffer tank for heat pumps
ACCU – A – is designed as a buffer tank for heat pumps or solar collectors. ACCU features dual sets of flow/return connections, which provide flexible connection and installation options, in addition to a separate G1/2″F connection for air vents and a drain connection. ACCU ensures that the energy source has optimal operating conditions and provides a stable temperature for the system.
ACCU is a series of highly energy-efficient, PUR insulated buffer tanks for heating systems.
ACCU is in stainless steel design which ensures a trouble-free system vs. buffer tanks in mild
steel. ACCU features a modern design and fits perfectly in any heating system.
WHY CHOOSE ACCU?
- Stainless steel buffer tank for heating system
- Provides optimal operating conditions for heat pump
 |  |  | ||
| Specifications | UNIT | A 60 | A 100 | A 200 |
|---|---|---|---|---|
| Identification | ||||
| Product no. | OSO | 1 1 009 165 | 1 1 003 162 | 1 1 009 745 |
| Product name | A 60 | A 100 | A 200 | |
| Usage | N/A | N/A | N/A | |
| Placement | Floor | Floor | Floor | |
| Dimensions | ||||
| Diameter — ⌀ | mm | 434 | 434 | 595 |
| Height - H | mm | 741 | 1168 | 1265 |
| Weight | kg | 18 | 28 | 39 |
| Packaging | mm | N/A | N/A | N/A |
| Freight volume | dm3 | 0.18 | 0.27 | 0.48 |
| Technical/ErP information | ||||
| Capacity | persons | N/A | N/A | N/A |
| Capacity 40°C | L | N/A | N/A | N/A |
| Volume | L | 57 | 100 | 199 |
| Heat-up time ΔT 65°C | hours | N/A | N/A | N/A |
| Thermostat set point | °C | N/A | N/A | N/A |
| Heat loss-EN 12897 | watt | 44 | 55 | 46 |
| AEC (energy consumption) | kW/year | N/A | N/A | N/A |
| Energy efficiency | % | N/A | N/A | N/A |
| Tapping profile | 3XS–XXL | N/A | N/A | N/A |
| Energy rating | A+–F | C | B | B |
Advantages
MORE HOT WATER
Substantially higher temperature (70°C+), highly efficient mixing valve (no scolding), minimal heat loss and optimal design features gives up to 20 % more hot water and class leading capacity.
PRO INSULATION
The use of NANOPUR™ with insulation values far surpassing Pentane, often in combination with VACUUM panels, ensures minimum heat loss and class leading energy efficiency.
STRONGER
EVERLAST™ titanium alloyed stainless steel in combination with OSO’s unique ULTRAWELD™ system and state-of-the-art passivation process equals class leading corrosion resistance.
LIGHTER
EVERLAST™ titanium alloyed, high tensile strength, stainless steel equals lower weight and efficient use of resources. OSO products are more than 40 % lighter than enameled products.
BUILT TO LAST
INCOTEC™ el. immersion heaters with ultra high-grade Incoloy 825 stainless, DZR brass, zinc-free soldering and carefully calculated surface loads results in maximum durability in hard water.
